Perpendicular PCB mount for Tayda banana jack

by JSON_statham · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles1.8k
UploadedMar 17, 2026
⬇ 42 downloads ❤ 1 likes 👁 32 views

Description

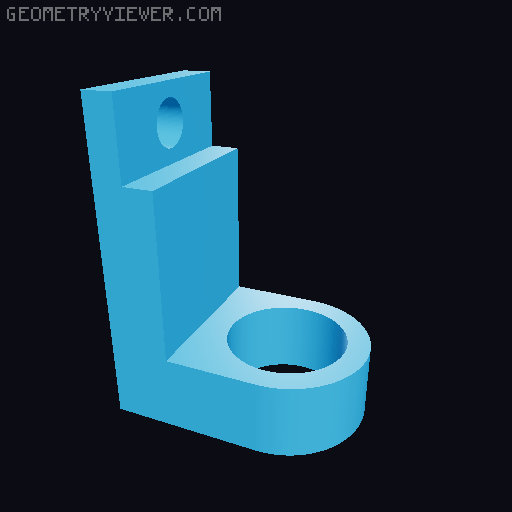

I make DIY Eurorack modules and was looking for a solution to mount PCBs perpendicularly behind a narrow front panel without putting screws thru the faceplate, or using conductive metal brackets that interfered with other components mounted to the back of the faceplate. This will mount a PCB with a bit of distance so you have room for wiring, etc. Hopefully this helps someone! It's designed to replace the rear plastic on this part: https://www.taydaelectronics.com/4mm-banana-female-socket-yellow.html
eurorack
