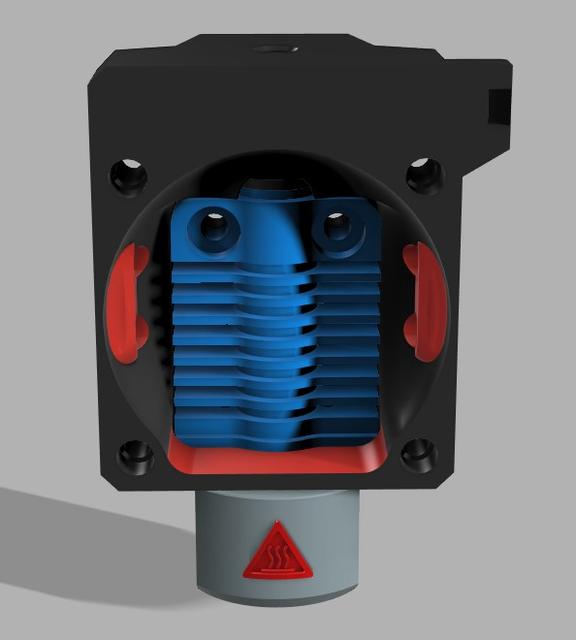

Phaetus DragonFly 7 fin BMS for EVA v.3 ... #72mod (heat insert version only!)

!!! PLEASE NOTE - THIS MOD IS ONLY FOR THE 7-FIN, HEAT INSERT MODEL !!! Great mod by @themacboy - appreciated and thx for sharing, and ofc not possible without the whole EVA thing going on before that. After the initial install (of std nut version) and using this for a few weeks, I had a couple of small potential improvements in mind … so here they are: First mod is a thicker “base” between the heat block and the cooling fins - the original is only 1mm “thin” and seems to warp easily (esp when printed in PETG as mine was). added some depth to make it 2mm thick here. this shouldn't affect cooling in any significant way hopefully will reduce any warping in this area I've now also acquired and printed this in ASA, which should hold up better to the heat (still need to tune extrusion, print profiles etc for ASA so my print in photo is a bit rough … but it gives you the idea) Second mod is for the side heat inserts … again find the walls a bit thin (esp at front) so I created more depth here so that the inserts now have more material to fuse into and support them/whatever you bolt through there. I used m3x4mm heat inserts, longer ones should also work despite protruding a little further Visual cues to these mods - see parts highlighted red on the render I've uploaded I have yet to mount and test this, however I can't see there being any issues - let me know if you try it and run into any. Feel free to donate via Paypal if you appreciate this and would like to help feed my filament needs :)
