Pi Zero 2 Mount for Prusa Mini Base

by gb160 · via Printables
FormatSTL
CategoryArt
LicensePublic Domain (CC0)
Triangles2.6k
UploadedNov 10, 2021
⬇ 109 downloads ❤ 33 likes 👁 1.8k views

Description

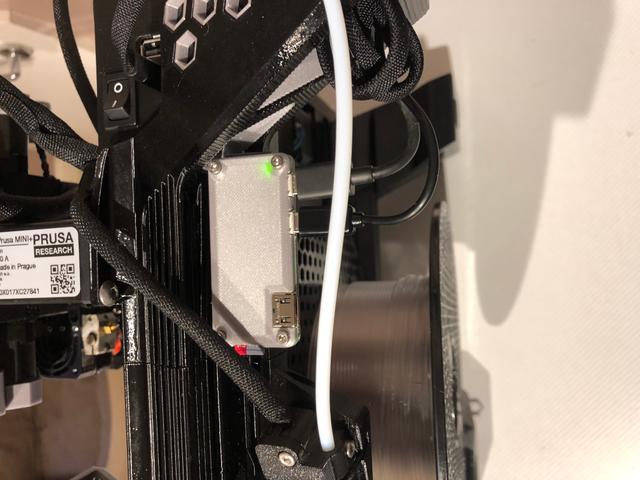

Just a case/mount solution to mount Raspberry Pi Zero 2 to the excellent Prusa Mini Base mod by David Warboss: https://www.prusaprinters.org/prints/63483-prusa-mini-base It uses the existing holes in the Mini Base rear right leg, so no modification to the base is necessary, ideal for octopi. Requires 4 x M2.5 x 6mm screws to secure the top and bottom pieces, I've added 4 M2.5 nuts at the rear, but they're not critical, just dont over tighten. Requires 2 x M3 screws to mount to Prusa Mini Base rear right leg, I used M3 x 20 as that's what is recommended to mount the filament sensor to the right front leg to the Mini Base. Printed in PLA @ 0.15 layer height, but should work fine with most filaments and layer heights. This is the original case: https://www.prusaprinters.org/prints/84138-slim-raspberry-pi-zero-2-w-case I've just made the bottom thicker for greater rigidity as the original bottom was very thin, and I've added screw holes as the existing model didn't seem very secure.
mini pi raspberrypi prusamini raspberrypizero2w
