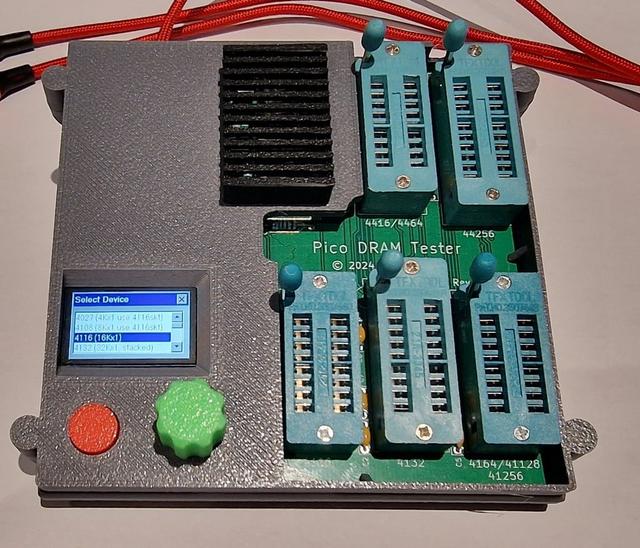

Pico Dram Tester lid with OLED mods, M3 inserts and some alternate buttons.

A minor remix of Attilans DRAM tester enclosure (he has done the hard work!) to match the items I had and hopefully help with OLED spacing. I started off by changing the USB-C connector to fit the ones i already had from Aliexpress (more circular). Then I noticed that Attilan had warned that the OLED might have to be soldered higher up. I decided to create a small support platform for the OLED and to change the OLED window so that it tapers down to the resting position of the OLED. I decided to use M3 brass inserts rather than self-tappers because I know I will keep taking it apart and self tappers don't like that. Finally the button was too tight for the specific heights of the tactile button I have in stock so i cut a 3mm recess into the button. The bottom pieces (flat or 15 degree sloped) are as per Attilan's original. The grill piece and the knob are also as per the original. The top and the button have been changed and there is a new piece for the OLED spacer.
