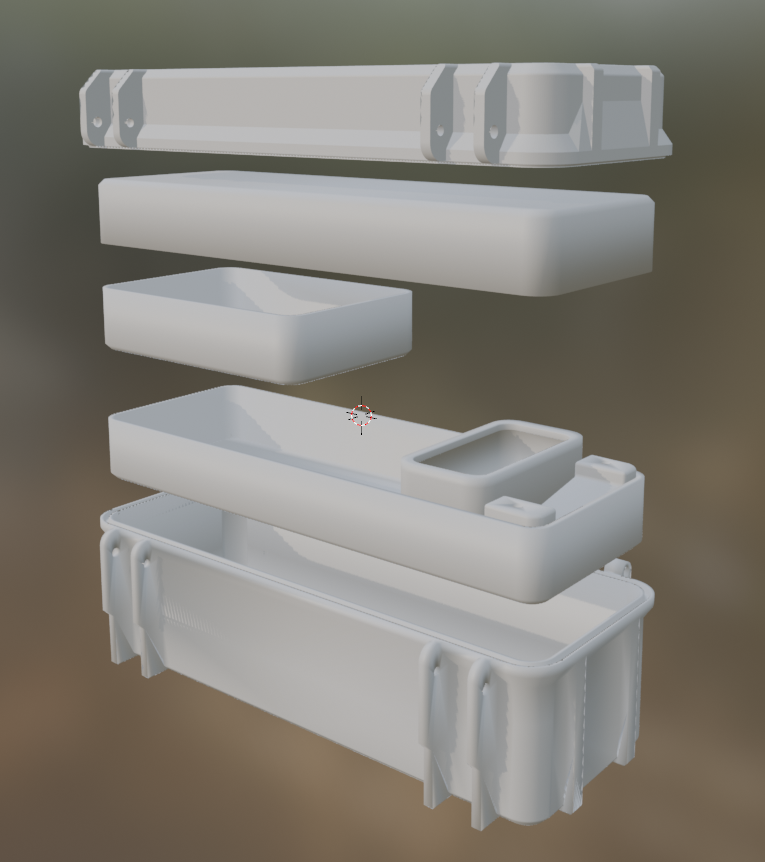

Pinecil Case Modular edition 3D model thumbnail

Pinecil Case Modular edition

by bux · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles187.3k
UploadedJun 8, 2025
⬇ 37 downloads ❤ 4 likes 👁 399 views

Description

This case features a modular design of the original Rugged Multipart Pinecil-Case. No need printing this huge inserts anymore, thanks to velcro straps. Benefits: Completely modular, through the use of Velcrostraps Different Soldering stand (which doesnt melt away, takes less space (2mm diametter Metalwire needed) Everything in one case, from Powerbrick to TipCleaner Dimensions: 19,5cmx9cmx8cm Insert height increased to 2cm for more room Tip: Soldering stand must be placed in a corner, when used due to the weight distribution. Put the Tipcleaning module next to the stand, to make the stand even stronger Tip holder is narrower. if you want a looser fit, sanding it helps. Example Setup: Soldering Iron Pinecil 64 (with normal tip mounted) Pinecil tip (fine) Power supply Anker Nano II Usb-C Cable Utility Tippy lead free soldering tip cleaner Soldering iron stand/holder module Brass wool tip cleaning module tweezer solder flux pen Coming soon: Powerbrick: Anker Nano II holding module
box case modular storage ts100 solderingstand rugged pinecil ts100case modularmountsystem pinecil64 pinecilcase

Originally published on Printables
