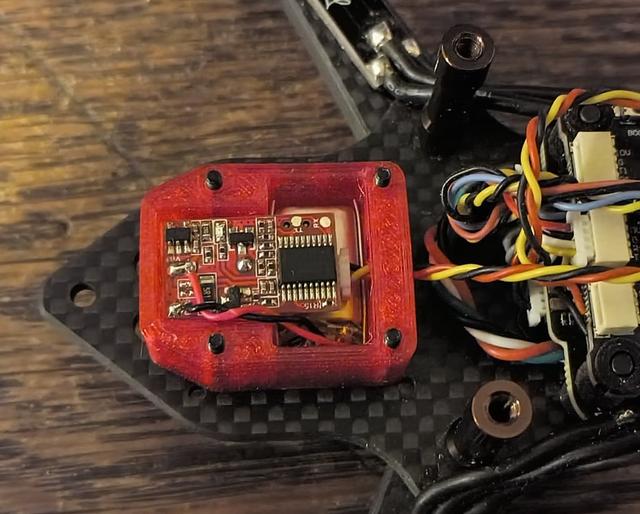

Pirat Punch 20x20 VTX Mount with Vifly Finder 2 Storage 3D model thumbnail

Pirat Punch 20x20 VTX Mount with Vifly Finder 2 Storage

by Timeless3D · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-NC
UploadedApr 11, 2026
⬇ 1 downloads 👁 16 views

Description

Tried to find an elegant way to fit a Finder 2 in the back of the Punch, but kept running into slight space and clearance problems. The solution to this is to cut the shrink wrap off the Finder, and split the battery and the buzzer so that space can be more efficiently utilized. This was modeled based on the Rush Tank Solo VTX, but should also work with other 20x20 mount VTXs since you end up with a lot of extra clearance. This should also work for other quadcopters with 20x20 mounting in the rear. Print upside down from the orientation this is modeled in, because I had to switch some things around pretty late in the design process. Make sure to put a couple layers of electrical tape over the back of the buzzer board so it doesn't short out on the VTX housing.
20x20 vtx mount pirat punch Rush Tank Solo Vifly Finder 2
