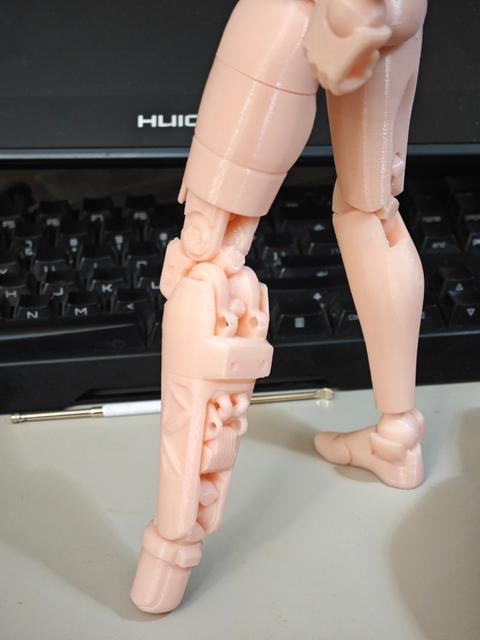

Pointy Robotic Legs for CARBON 13

The robotic leg design is from my original character "PA-MF03 Komatsuna". Leg 3D model was done quite some time ago. I tried to make it 3D printable with the filament hinge method but no success, things turns out too loose and I can barely assemble things at 100% scale since my printer isn't that well tuned. I really like CARBON 13's joint design, it prints well and assembly is straight forward. So I adapted these joint designs to my own model. This model is mostly for aesthetics since these pointy feet makes it hard to pose standing. If she's a real robot there'd be gyro sensors and micro adjustments to help her keep balance, I guess. To assemble a whole leg you'll need some parts from soozafone's original CARBON 13 Type-F post. "joint_f_elbow_2x-v6" for the foot joint. "body_f_hip_2x_v3" for hips. Mirror the "PA-MF03_thigh" part to get right thigh. Knee and kneecap may need to be glued together AFTER the assembly. Print in the orientation as provided with built-in support. I printed mine with 250% scale, 0.2mm layer height, 0.4mm nozzle, PETG.
