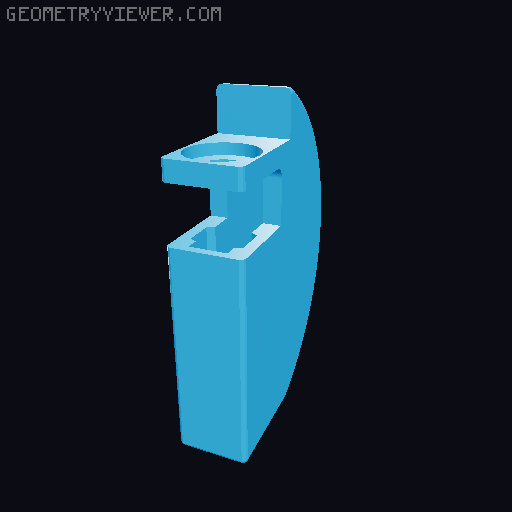

PortaRF Antenna Holder

Keeps your proprietary telescopic antenna from tilting left or right. Only for some proprietary antennas with 6.35 mm (1/4") hex nut SMA connector. The antenna supplied with the PortaRF does not have a tendency to tilt and my holder wouldn't fit. 7 mm version printed and tested with a 7 mm diameter antenna. Aditional versions are provided as .stl for your convenience. Supports required. Print it upright (see slicer screenshot) to avoid problems with layer adhesion. Upright printing may require a skirt around the base to strengthen printbed adhesion. As always I include the OpenSCAD source file for you to adapt and/or improve: Download and install OpenSCAD from https://www.openscad.org Launch OpenSCAD and open the enclosed OpenSCAD source file (/File/Open). Amend the parameters at the top of the file or even amend the code. Save your changes (/File/Save). Render the design (/Design/Render). Export the rendered design e.g. as a .stl file (/File/Export/Export as STL). Slice and print. See my other designs at https://www.thingiverse.com/thinger13/designs
