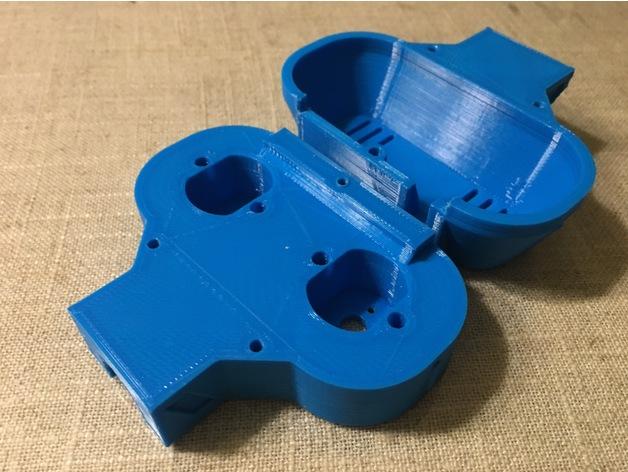

Pre-V1.13 Gryphon Flywheel Cage
by Flygonial · via Printables
| Format | STL |
| Category | Other |
| License | Public Domain (CC0) |
| Triangles | 31.3k |
| Uploaded | May 24, 2023 |
⬇ 23 downloads
❤ 4 likes
👁 320 views
Description
In V1.13 of the Gryphon redesigned the flywheel cage to allow it to be printed in the opposite of the original orientation: with the side that the motors insert into as the bottom layer. Less supports (though still recommended), and hopefully less alignment issues with warping and other print defects. This required making the cage 1.5mm thicker (and in order to minimize this extension, I reduced the bottom clearance for the flywheels by 1mm (don't worry, it was initially deliberately excessive), and the mounting points were moved up 2mm. Therefore, the magwell is also now slightly different, so are all motor cover designs, and even the flash hider. Here are the files for the older cage for backwards support.
Originally published on Printables
