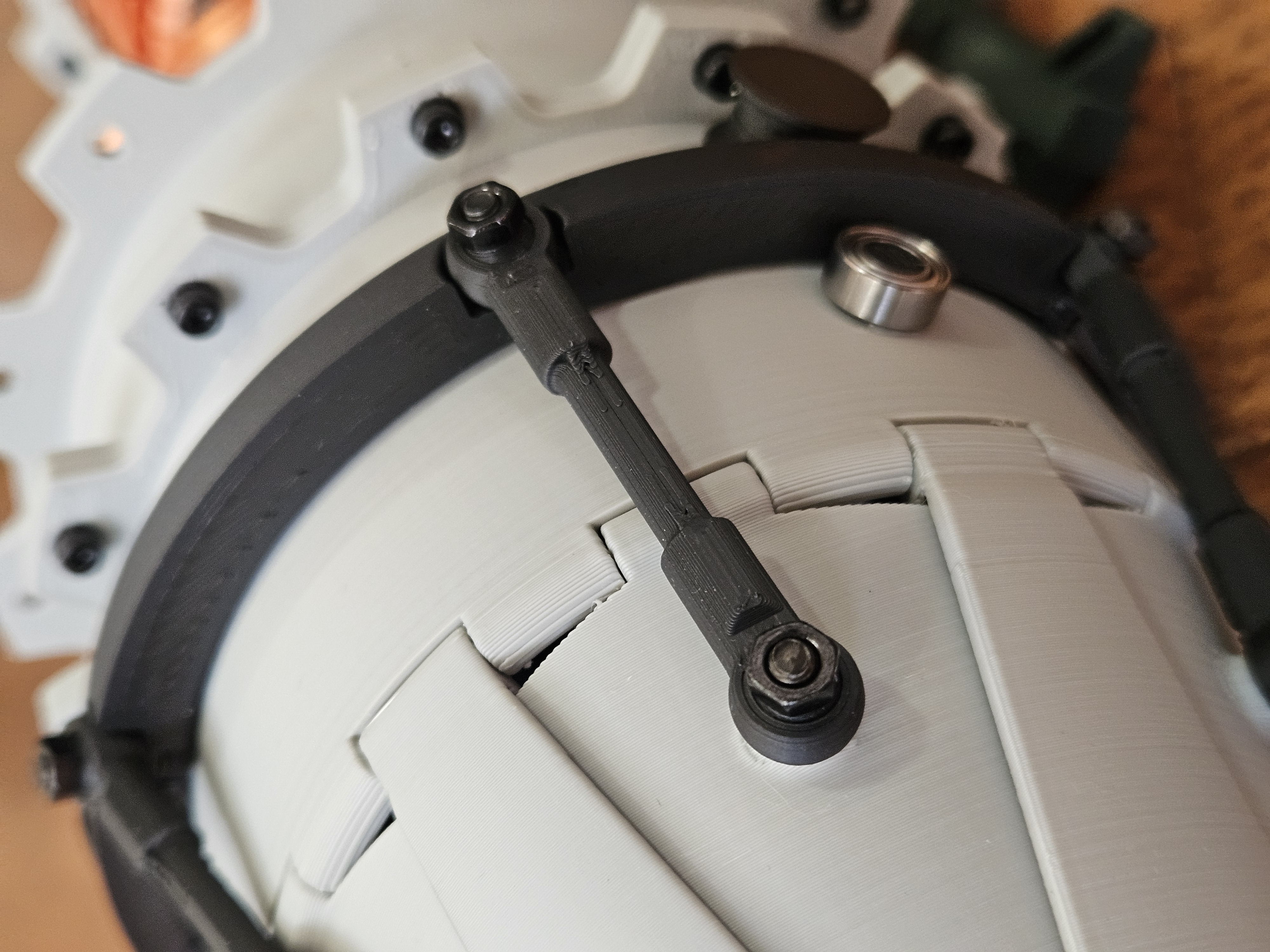

Print-In-Place Tie Rod for Turbojet Variable Nozzle 3D model thumbnail

Print-In-Place Tie Rod for Turbojet Variable Nozzle

by Inuit · via Printables
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles15.6k
UploadedMar 19, 2025
⬇ 83 downloads ❤ 12 likes 👁 375 views

Description

Print-in-place rod end for Afterburner & Variable Nozzle . Linus3d's model is amazing. I wanted to print the rod ends and Dan Lee's model was perfect, but printed M3 rods to connect the ends turned out to be too fragile. In order to avoid sourcing metal M3 rods, I remixed the model so it fits the petals and ring perfectly while being strong enough to deal with the rotation. Printed on a Voron 2.4r2 with a 0.4mm nozzle on a PrusaSlicer default 0.1mm height profile. Supports enabled (build plate only) 0.1mm for best result
