Print-in-place tissue box with magnetic lock
by miziomon · via Printables
| Format | STL |
| Category | Gadgets |
| License | CC BY-SA |
| Triangles | 22.5k |
| Uploaded | May 10, 2023 |
⬇ 74 downloads
❤ 32 likes
👁 770 views
Description

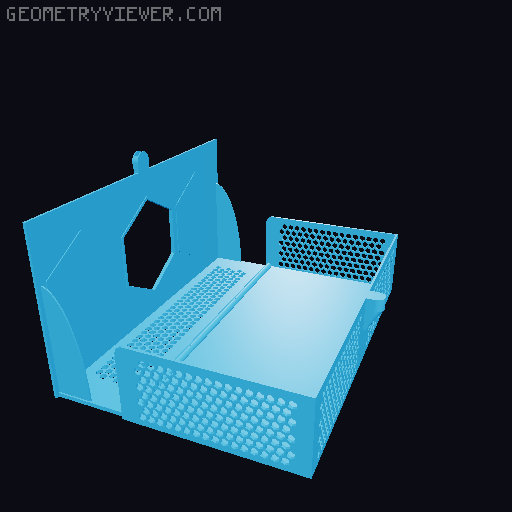

This is the tissue box 120x120x120 I made to be one-shot printed with no support. I used a hinge that doesn't need screws and bolts. (thanks to https://www.printables.com/it/model/307580-parametric-hinge) The box remains lock with two magnets that are inserted into their slots. I hope you like it and if you have any suggestions or requests I will do my best to make them happen. Now 3 patterns are available: honeycomb, cube, and triangle Enjoy! Printing Material: PLA Layer: 0.2mm Infill: 15% Supports: NO Parts needed 2 x 10x3mm magnets Updates v2.1 - fix box dimensions to 250*130*60 and set hinge knuckle count from 3 to 5 v2.0 - added 230*115*55 box v1.5 - added honeycomb front side and back side Are other versions available? If you like the model, but you have different sized magnets, like and comment. I will do my best to add all the suitable sizes. Stay in touch!!!
Originally published on Printables
