Prodesk/Elitedesk Wall Mount

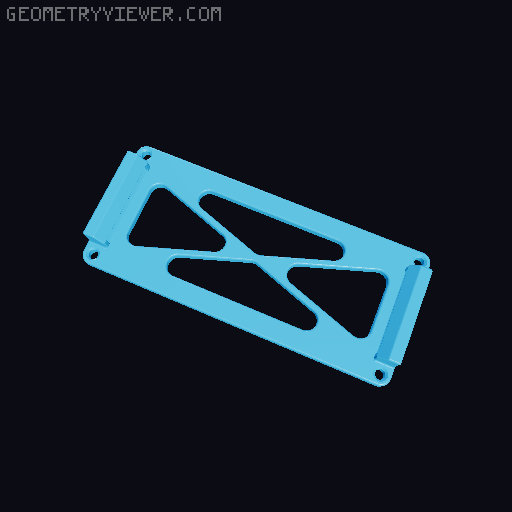

Wall or under-desk mounting bracket designed for older types of HP's Prodesk and Elitedesk Mini PC's. They have a VESA 100mm attachment on the bottom and this bracket makes use of that. The PC side bracket has a spot for the 65watt power brick to clip under the machine and a pair of holes for a zip-tie to tuck the cable away neatly. Needs 4pcs M4x12mm bolts to attach the PC to the bracket and 4pcs countersunk screws to attach the wall plate to the wall/desk/etc. Just screw the wall plate to the surface where you want to mount your Prodesk/Elitedesk. Then bolt the bracket to the bottom of the machine. Clip the powersupply in, plug it into the machine and roll up and ziptie the excess cable to the ziptie holes. Now, clip the whole unit onto the wall plate. Printing instructions: Since the hooks are small overhangs, this print will require some supports (see example image). You may need to give the supported overhang areas a bit of sanding. Tollerances have been designed in, but may not be enough to overcome roughness from supported printing. Advice to print with at least 1mm thick walls/top/bottom. 1.2 to 2.0mm for optimal strength. PLA should work (shown print is PLA). Anything better is ofcourse... better :-P Please leave a like and/or post a make!
