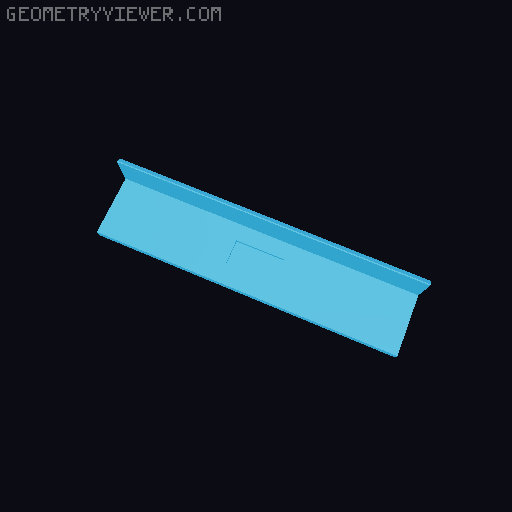

Protective Vise Jaw Inserts

When working with delicate parts, I often needed to clamp something in a vise without leaving marks or scratches on the surface. So I designed and 3D-printed my own protective vise jaw inserts / soft jaws . They are simple, practical, and help protect metal, plastic, wood, and other materials from damage caused by hard steel jaws. I made four versions in total : knurled with magnet knurled without magnet smooth with magnet smooth without magnet The magnet versions have a dedicated spot for a magnet, so the inserts can stay attached to the vise jaws more easily. I also kept different vise widths in mind, so you can choose the size that fits your vise best. Want to see them in action? 👉 Watch the full video here: https://youtube.com/shorts/ZuzUBAXDcZQ ⚙️ Features Protective inserts for a vise Helps prevent scratches and surface damage Knurled and smooth versions available Versions with or without magnet Designed with different vise widths in mind Simple and fast to install 📏 Jaw Dimensions Used I based these soft jaws on the following vise jaw dimensions 63 mm width / 14 mm height / 8 mm depth 80 mm width / 18 mm height / 10 mm depth 100 mm width / 22 mm height / 12 mm depth 125 mm width / 25 mm height / 15 mm depth 150 mm width / 28 mm height / 18 mm depth 200 mm width / 28 mm height / 18 mm depth 🖨️ Print Settings Material: ABS and TPU tested, both work well. PETG should work too. Layer height: 0.2 mm Infill: 20% Supports: Only magnet version - more on pictures 📂 File Overview Knurled Versions knurled_63mm.stl knurled_63mm_mag.stl knurled_80mm.stl knurled_80mm_mag.stl knurled_100mm.stl knurled_100mm_mag.stl knurled_125mm.stl knurled_125mm_mag.stl knurled_150mm.stl knurled_150mm_mag.stl knurled_200mm.stl knurled_200mm_magstl.stl Smooth Versions smooth_63mm.stl smooth_63mm_mag.stl smooth_80mm.stl smooth_80mm_mag.stl smooth_100mm.stl smooth_100mm_mag.stl smooth_125mm.stl smooth_125mm_mag.stl smooth_150mm.stl smooth_150mm_mag.stl smooth_200mm.stl smooth_200mm_mag.stl
