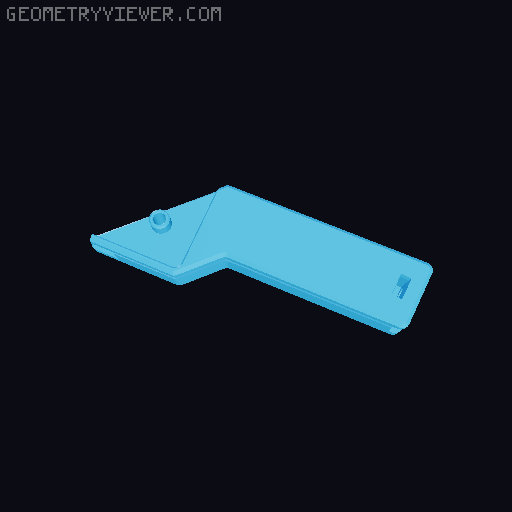

Prusa MINI filament sensor holder with cable duct 3D model thumbnail

Prusa MINI filament sensor holder with cable duct

by Daniel · via Printables
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles2.3k
UploadedAug 15, 2020
⬇ 170 downloads ❤ 39 likes 👁 2.2k views

Description

This is a remix by Štěpík, I took the 60mm length, changed it slightly and added a cable duct. But I had to extend the cable from the filament sensor, otherwise it would be too short, and I took the new-base from blaker9410, which fits the arm wonderfully. The arm and base should be printed in TPU as the resonance when printing affects them and creates an annoying noise. In TPU I no longer have the problem. required parts for Filament Sensor holder: 1x M3x10mm Cylinderhead screw (DIN 912) 1x M3 square nut (DIN 934) 1x M3x40mm (arm for Prusa MINI Extruder) 1x M3x55mm (arm for trianglelab Extruder Dual) 1x M3x55mm (arm for BondTech Extruder Dual)
mini filamentsensor prusamini sensorholder prusaminimod
