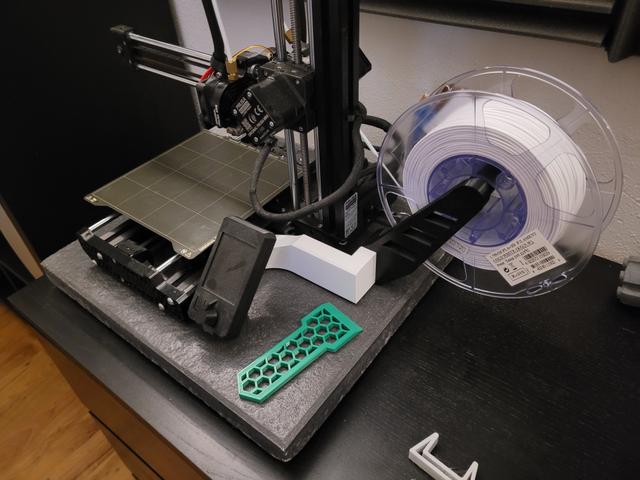

Prusa Mini Side Spool Holder 90 degree adapter 3D model thumbnail

Prusa Mini Side Spool Holder 90 degree adapter

by cguy · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles756
UploadedFeb 29, 2024
⬇ 26 downloads ❤ 3 likes 👁 217 views

Description

I didn't like that the filament had to move 90 degrees to the extruder so i threw together this quick change to put the spool directly in front of the extruder. I absolutely recommend to fix the X motor cable to the extrusion somehow, so that it doesn't interfere with spools. There is an obvious weight limitation with this angle, but i mainly print with 700g - 1000g spools and i didn't have any problems. I also recommend to restrict the size of your spool holder to the width of the spool your using, so the spool doesn't roll to the outside. I just used a zip tie. Print with supports on print bed. The orientation should be correct in the file. PS: obviously this design was not meant to be pretty, i just threw it together in a few minutes in tinkercad.
spoolholder prusamini
