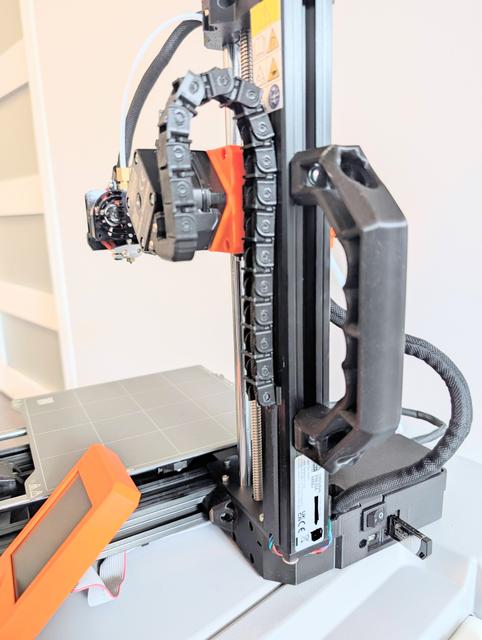

Prusa Mini X Axis Motor Cable Chain 3D model thumbnail

Prusa Mini X Axis Motor Cable Chain

by zuberio · via Printables
FormatSTL
CategoryArt
LicenseCC BY
UploadedSep 12, 2025
⬇ 21 downloads ❤ 10 likes 👁 240 views

Description

My own take/mix on a cable chain for the X-axis motor wire of the Prusa Mini +. This design only requires some zip ties to attach the mount to the X-axis motor as well as three M3 nuts and screws. Notes: 1) Each link has a small build-in support that needs to be cut off under each of the posts: 📷 Image redacted — claim this model to add your own media 2) Though not included in the STLs, I definitely recommend some form of bed adhesion improvement on the link flanges. Example: 📷 Image redacted — claim this model to add your own media 3) The tolerances between the posts and the holes in the links are zero. I did this so that pressing the parts together and then working them back and forth creates a no-jiggle fit.
3030 xaxis prusamini cablechain prusaminiplus
