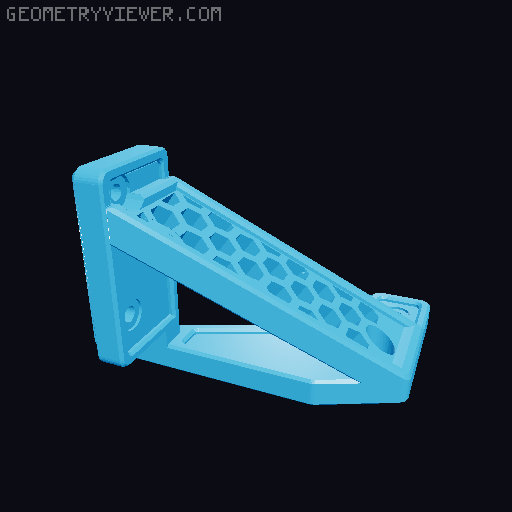

Prusa Mini Z-axis support brace 3D model thumbnail

Prusa Mini Z-axis support brace

by Dakar · via Printables
FormatSTL
CategoryArt
LicensePublic Domain (CC0)
Triangles5.5k
UploadedMay 25, 2021
⬇ 465 downloads ❤ 70 likes 👁 4.1k views

Description

This is a REMIX of the Prusa Mini Z-axis support brace by Fada, with a little Prusa Hex spin for the support. I also wanted to change the mounting hole on the x-axis as it seemed sharp and I caught myself on it while doing some work in that area. So, moved the hole up and extended the tab over just enough to clear the squash ball foot, behind the LCD assembly. This brace by Fada is incredibly stiff and was designed incredibly to do its function. Made a different version with another brace for a twin-brace for more stiffness on the z-axis.

Originally published on Printables
