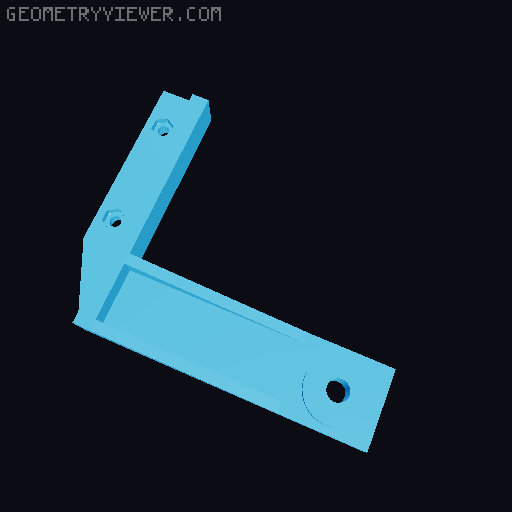

Prusa MK3S+ Camera Z Axis Mount Right Side 3D model thumbnail

Prusa MK3S+ Camera Z Axis Mount Right Side

by Peter · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles2.4k
UploadedOct 10, 2022
⬇ 57 downloads ❤ 15 likes 👁 547 views

Description

This is web camera mount on the Z axis motor that's on the right side (when facing the front of the printer). It should hold any standard camera that has a ¼" screw hole mount. My remix adds a hole for a m3 nut on the opposite size of where the m3 screw insert into (touching the z motor mounts) and changes the hole a bit for easier printing. Assembly: Remove the two m3 x 10mm BHCS screws on the motor mount, holding it in place while you screw in the new mount. Please mount onto the z axis motor. Screw in two m3 x 16mm BHCS screws to the motor mounts. Use either included 3d printed ¼" screw that I cobbled together (included in the model files) from two different models I found on printables in prusaslicer or your ¼" thumbscrew of choice. Adjust angle and elevation as needed. Printed in standard 0.2mm speed settings in prusa slicer.
prusa camera cameramount webcam prusamk3s prusamk3splus
