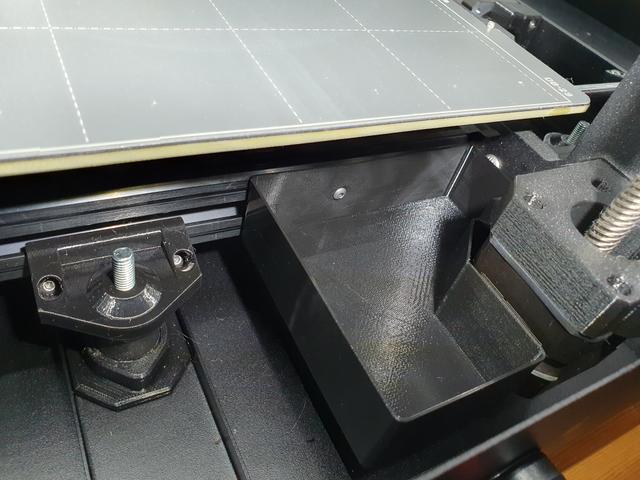

Prusa MK4 bin (remix) 3D model thumbnail

Prusa MK4 bin (remix)

by Legufix · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles1.5k
UploadedDec 10, 2023
⬇ 117 downloads ❤ 22 likes 👁 825 views

Description

I liked the idea of catching the filament fragments that sometimes fall down when the extruder is in the parking position. The original didn't quite fit for me though, because I wanted a tighter, more secure fit so the bin doesn't rattle when printing at higher speeds (especially relevant for input shaping). I adjusted the geometry because the original depth was too deep for me and I can't use the full length because I use a Printer Box with the polymer damper feet. Also, I wanted a bin that better fits the contour of the stepper motors. To improve the fit I adjusted the hooks. In addition, a hole is provided for an M3 screw so that the part can be fixed to the profile with a T-slot nut.
prusa sidebox bin side mk4
