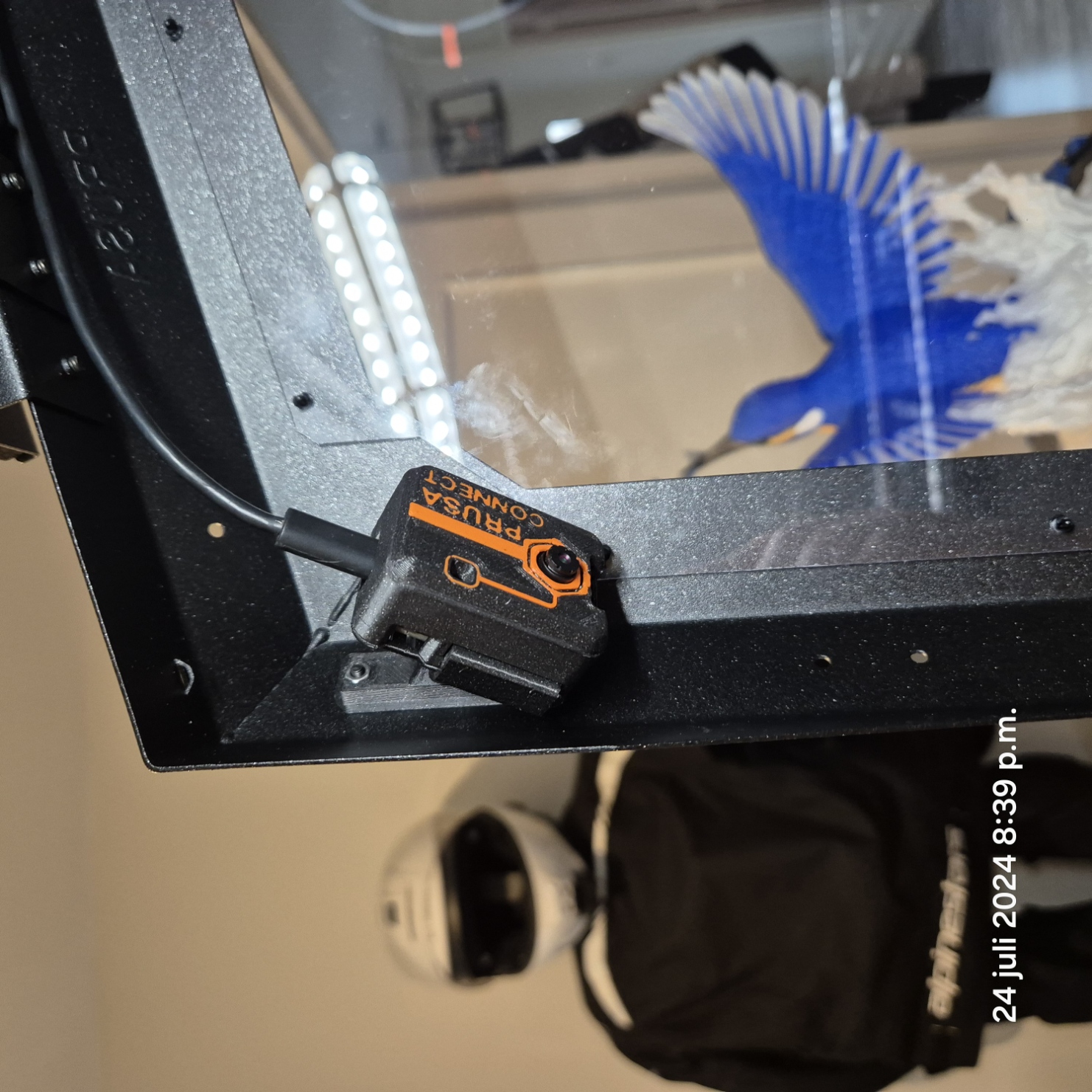

Prusabot ESP32 cameramount for Original Prusa XL enclosure

Posted with prior aproval of @jorge_rui Instructions; 1) Print the front plate from the original Prusabot page (paid model) and print both parts from this listing 📷 Image redacted — claim this model to add your own media 2) place the nuts inside the mount and screw both halves together, the M3x12 screw sets the tension of the mechanism. 3) Mount the PRUSABOT to the left-front of the enclosure with M3x8 bolts. There will be 3 holes in the sheet metal. Use the top and bottom one. While mounting, make sure the clamps are on the bottom side (otherwise the cable will come out on the bottom) 📷 Image redacted — claim this model to add your own media 4) Slide in the PRUSABOT front with the ESP32-CAM module in place 📷 Image redacted — claim this model to add your own media 5) Connect the USB to the module and route it via the premade cabletie-holes in the enclosure to the left-bottom corner (where the fan and LED cables exit as well). Plug the other end of the USB to a power source. 📷 Image redacted — claim this model to add your own media And that's it!! now configure the camera following the guides listed on Github and the Prusa blog
