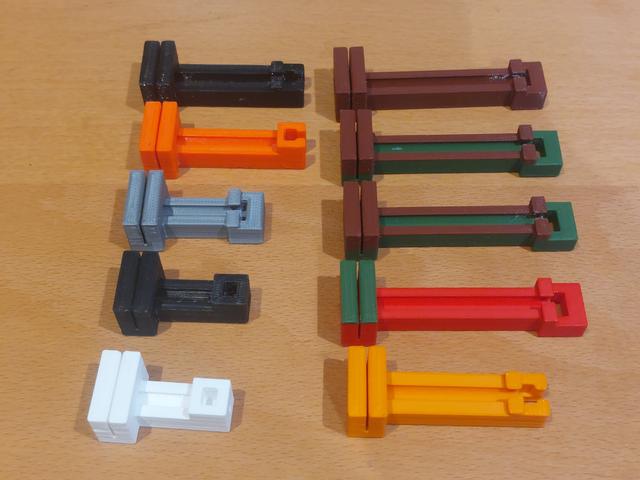

PTFE tube OD 4mm jig cut - all sizes from 20mm to 70mm 3D model thumbnail

PTFE tube OD 4mm jig cut - all sizes from 20mm to 70mm

by ron · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles8.2k
UploadedOct 17, 2024
⬇ 132 downloads ❤ 18 likes 👁 636 views

Description

Maturity: Very Good 8 prototypes. In use since 2020/11. Pick the size that fits your needs. I takes too much time to reorder the 501 files properly. They will stay disordered. I let you make a text search on files page for the needed file. To check the accuracy of the printed model and thus the cutting. The overall dimension of the part is 10mm more than the tube cut. Nice to check before cutting. I can add more sizes range if demanded. Material: PLA, with its low thermal expansion, is a good candidate to achieve accurate printing. It is the perfect use for ending a filament spool. Official (https://help.prusa3d.com/guide/how-to-trim-ptfe-tube-original-prusa-printers_22424): PartBrandConfigLengthHotend PTFE tubePrusaMK2/S, MK2.5, MK3, MMU250.0Hotend PTFE tubePrusaMK2.5S, MK3S, MMU2S44.3Hotend PTFE tubePrusaMINI/+43.4Hotend PTFE tubePrusaMK3S+, MMU2S42.3Hotend PTFE tubePrusaMK3S+ with my Dragon hotend adapter28.0 Unofficial: PartBrandConfigLengthHotend PTFE tubePrusaMK3S+ with my Dragon hotend adapter (https://www.printables.com/model/274974-mk3s-extruder-body-and-motor-plate-compatible-with)28.0Hotend PTFE tubePrusaMK3S+ with Revo30.0
cut jig ptfe tube helper
