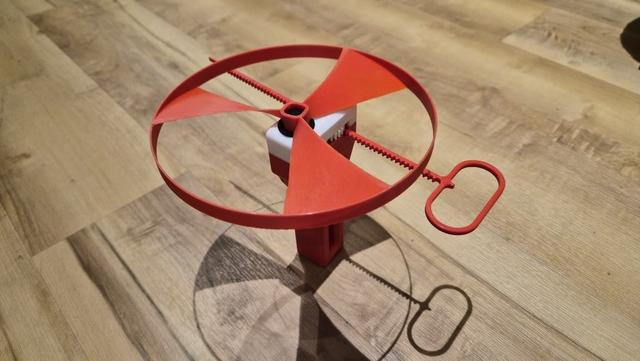

Pull-Back Copter - Flying Propeller Toy

Design Concept The Pull-Back Copter is designed as an engaging and simple propeller toy that captures the imagination of children and adults alike. Its minimalist design allows easy handling and operation. This design is inspired by my childhood memories of simple pull-to-fly toys, recreated in a modern, 3D-printable form while staying true to the original feeling. Purpose This toy serves as both a fun plaything and an educational tool to demonstrate basic physics concepts like aerodynamics and motion. It's an excellent choice for cognitive development in children while ensuring entertainment. Printing Recommendations Use PLA, PETG, or LW-PLA depending on your preference: PLA: Easy to print, good stiffness, ideal for general use PETG: More durable and impact-resistant LW-PLA: Lightweight, improves flight performance of the propeller Opt for a medium layer height to ensure a good balance between surface quality and print time. No supports are necessary if the parts are oriented correctly, except for the propeller and the pull-strip, as these are very flat parts and may benefit from being printed on a stable base for better adhesion and print quality. Assembly Instructions Post-printing assembly involves attaching the propeller to its base and ensuring the gear mechanism is properly aligned for smooth operation. To improve structural stability and allow support-free printing, the axles are designed in two separate parts. Each axle half is inserted from opposite sides through the gears,creating a strong and stable connection once assembled. This approach also avoids the need for supports during printing. This design is used for both axle positions. Required Parts: 4× M3x12 screws Optional (depending on version): 4× 608 bearings (e.g. 608ZZ) for smoother rotation 4× M3 heat-set inserts (for the insert version) Notes: Direct Plastic Version: Screws can be driven directly into the plastic. Insert Version: Use M3 heat-set inserts for improved durability and repeated assembly. Printed Bearing Version: Uses a fully 3D-printed bearing alternative. Bearing Version: Uses 608 or 608zz bearings for smoother rotation and improved performance.
