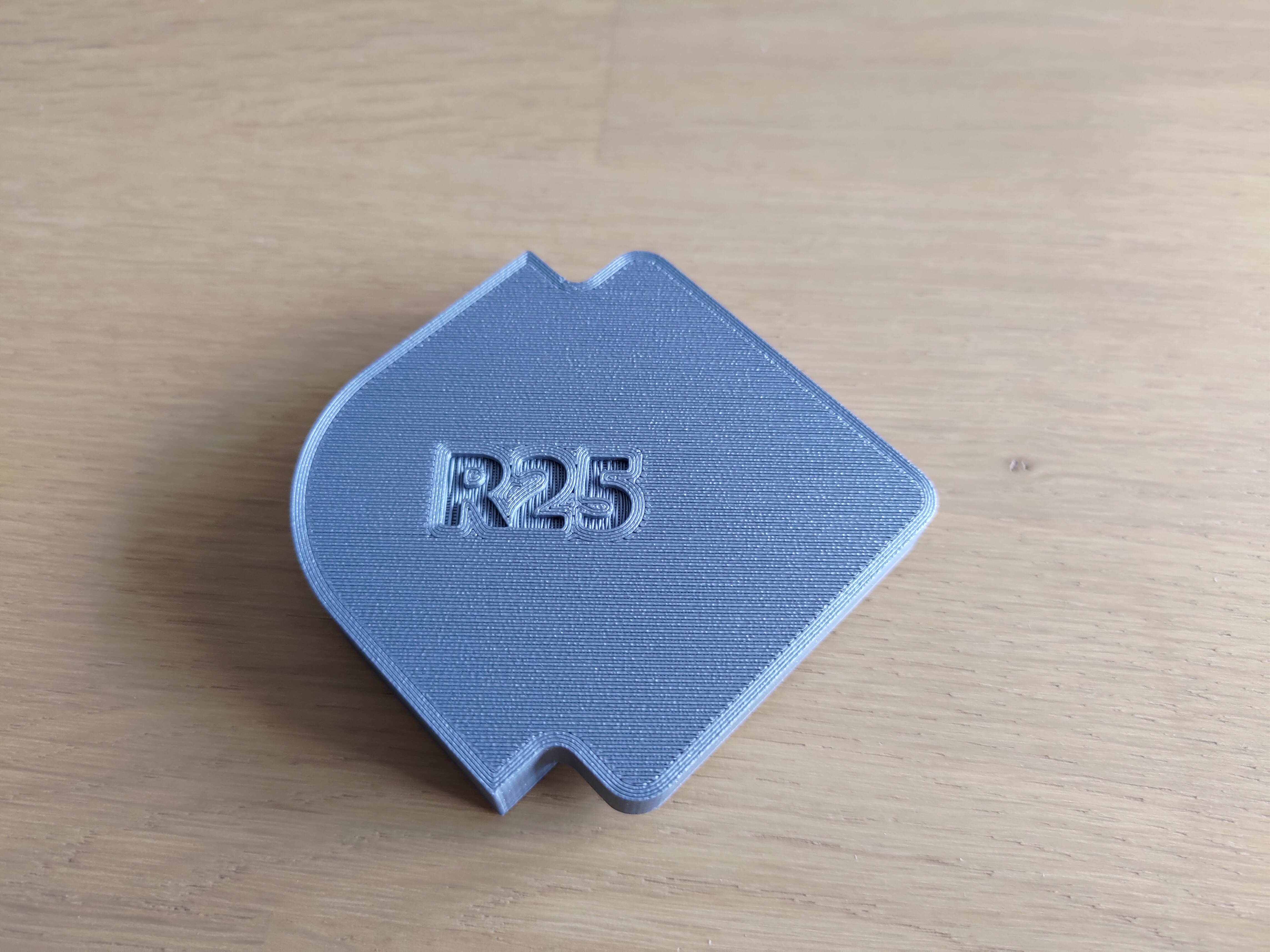

Radius and chamfer for Router Corner Jig 3D model thumbnail

Radius and chamfer for Router Corner Jig

by Inspiration Bricolage · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC
Triangles3.9k
UploadedMar 14, 2023
⬇ 264 downloads ❤ 44 likes 👁 1.2k views
⬇ Download STL 👁 View Details

Description

Here some more radius for the modular Router Corner Jig (https://www.printables.com/model/145817-router-corner-jig-modular). also I have created chamfer for the jig.
AI Analysis: This is a mechanical part designed for use in router operations. It features a rounded corner with a chamfered edge to facilitate precise cutting and alignment during the routing process. The part is typically used to create smooth transitions between edges in woodworking projects.
router jig corner

Originally published on Printables
