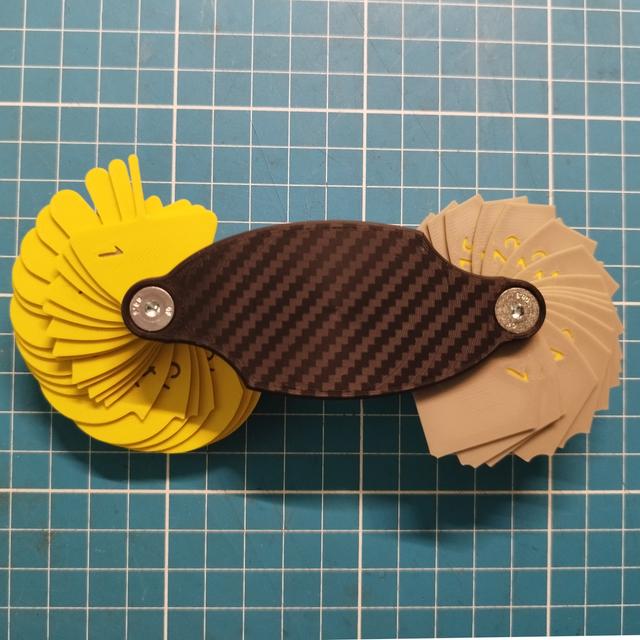

Radius Gauge 1-20mm with rounded corners 3D model thumbnail

Radius Gauge 1-20mm with rounded corners

by LucMeister · via Printables
FormatSTL
CategoryTools
LicenseCC BY
Triangles9.1k
UploadedDec 27, 2023
⬇ 79 downloads ❤ 22 likes 👁 847 views

Description

This is purely an “add-on”/alternative parts for the original radius gauge from the original Michal Blazek. Therefore, I didn't upload all parts, but only the ones I actually modified. Please use the rest from Michals original design :) The original IN gauges for sizes 1 to 6 will hit the walls when what you measure is in a right angle corner; I adjusted the corners so it won't do that. I also adjusted a few sizes more, purely for looks, so it's a nicer slope down :) I also removed the text on the front plate, as I prefer it clean. Print just like the original: 0,2mm first layer, 0.15mm for the rest
