Radius Gauge R1-30mm
by JonQ · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC-SA |
| Uploaded | May 27, 2025 |
⬇ 17 downloads
❤ 11 likes
👁 254 views
Description

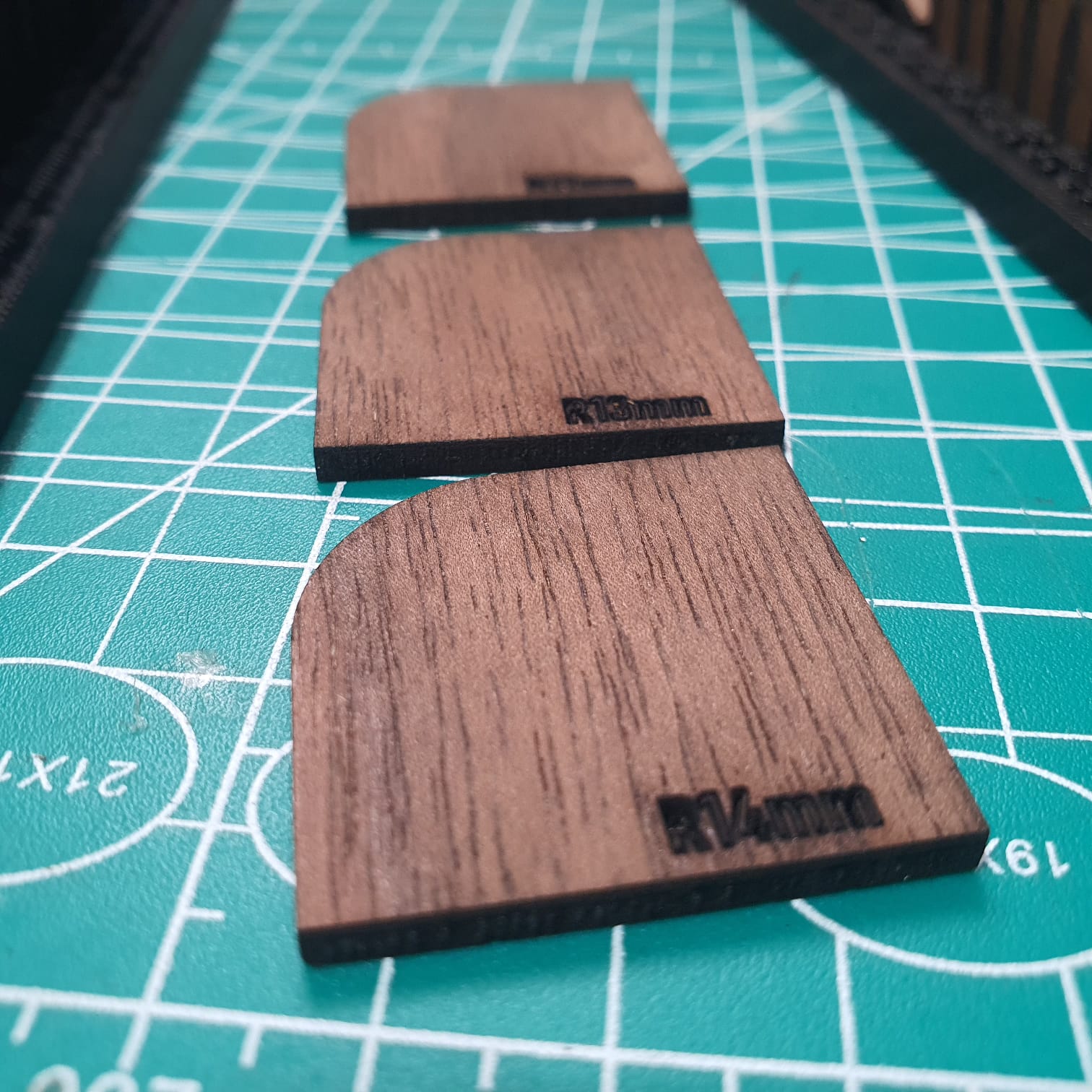

This instrument is crafted to accurately measure both internal and external radii, covering a range from 1mm to 30mm in 1mm steps. It offers a practical blend of utility and well-considered design, making it a dependable option for anyone needing precise radius measurements. While the concept draws inspiration from the 'Radius Redeux' design by user Joons, the housing and parts have been entirely reimagined to provied the option of laser cuting and 3d printing both its performance and ease of use. Please consider using 3mm thick material when lazer cutting Enjoy !
AI Analysis: These are precision wooden gauge pieces designed for use in a laser cutter, specifically for measuring and marking dimensions. Each piece features a clear shape with a wood grain texture and is labeled with 'R1-30mm' indicating its size and type. They are intended for use in crafting or assembly processes where accurate measurements are required.
Originally published on Printables
