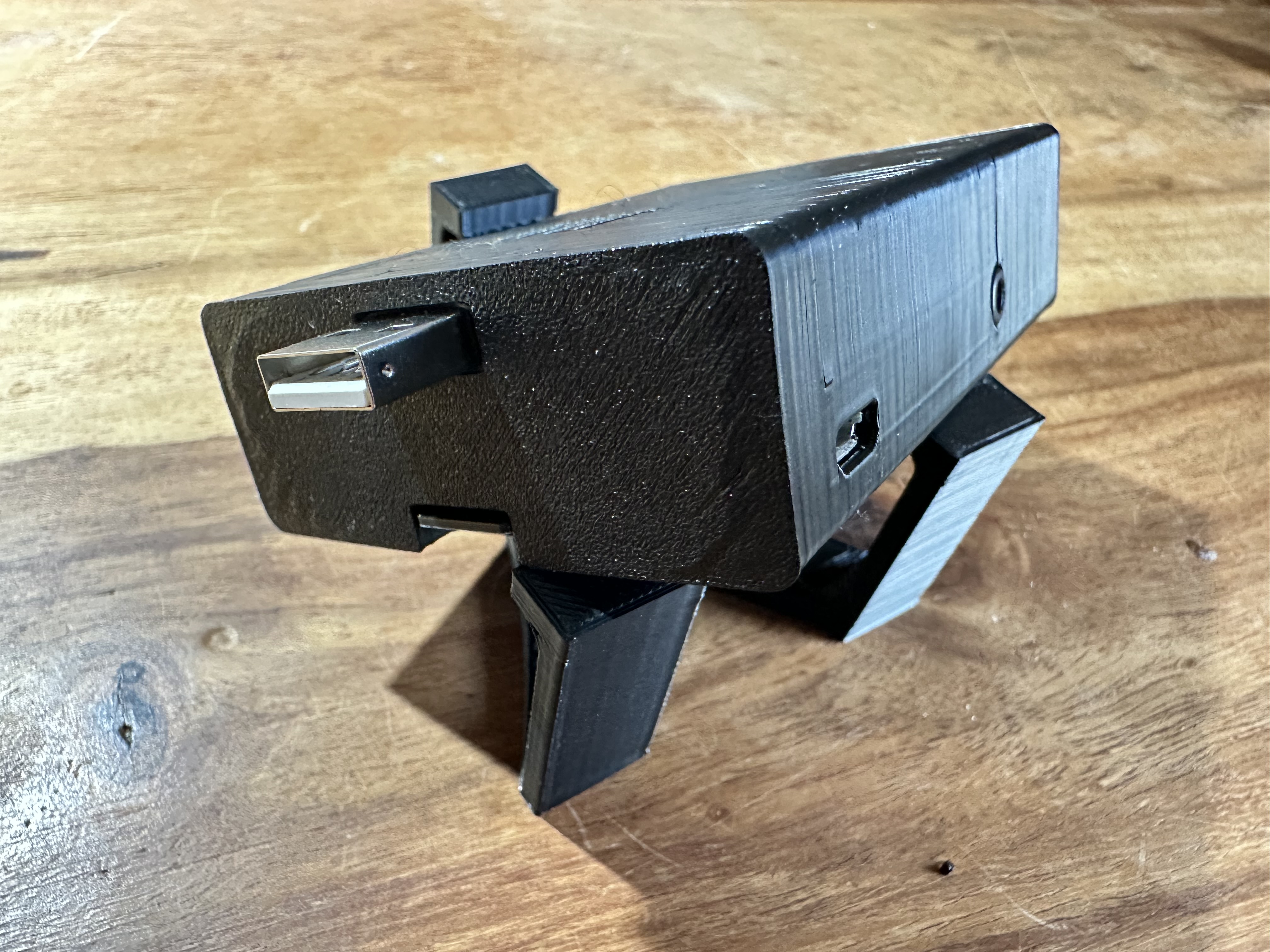

Raspberry Pi 3 (B+) / 4 Sleeve Case w/ CP2102 Holder + Wall Mount Bracket (e.g. for Optolink-Switch)

This is a remix of the Raspberry Pi 3 (B+) / 4 sleeve case designed to accommodate a CP-2102 USB to TTL breakout board , offering a small & compact way to fit into a single case. While I created this model to house a Viessmann Optolink splitter , it can be used for any project requiring a CP-2102 breakout board. The holder / case is designed to fit a Raspberry Pi 3 and was tested with a 3 B+ board. The main component of this print is the holder for the CP-2102 breakout board, which fits neatly over the RPi 3/4 display port (which thus becomes unusable). The holder was designed for a CP2102 board from AZ-Delivery, however with minor modifications it should fit any other breakout board as well. For any remixed changes, the holder is fully compatible with the original case , which can be easily adapted by adding a hole for the breakout board’s USB connector. Print & Assembly Everything can be printed without supports , so fit everything onto a build plate and print it. Then assembly is as straight forward as the print: 1. Fit the breakout board into the holder: 📷 Image redacted — claim this model to add your own media 2. Put the holder onto the RPi and fit the cables: 📷 Image redacted — claim this model to add your own media 3. Squeeze everything into the sleeve case: 📷 Image redacted — claim this model to add your own media
