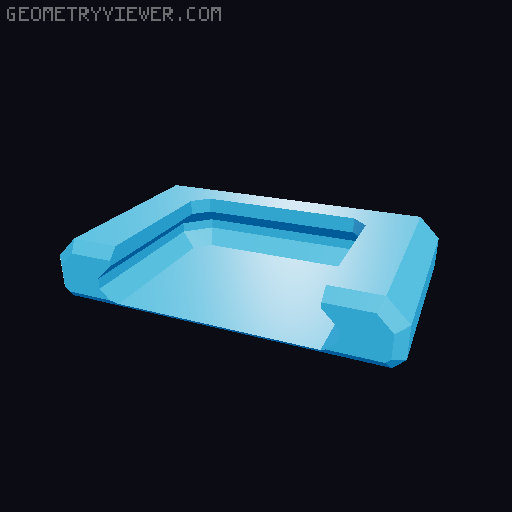

Raspberry Pi 3 B+ Case Skadis Mount

Print Files You can find actual RPi Case here . And the Attachment System here . Needed Materials 4x M3x8 Screws 4x M3 Heatset Inserts 4x M3 Washers Printing No Supports needed if you put the models in the right orientation ;) Make sure that your printing and material profiles are sufficiently tuned for overhangs and bridges. Assembly RPi Mounting: 📷 Image redacted — claim this model to add your own media Start by melting the heatset inserts in. 📷 Image redacted — claim this model to add your own media Then screw the bottom of the casing to the mount (don't forget the washers!). 📷 Image redacted — claim this model to add your own media Now you can asseble the rest of the casing. For the other side of the mounting: Just hold it up to your Skadis board, pushe the T-Clip through the slid and twist it, somewhere between 45 to 90°. Its pretty tight so don't overdo it. 📷 Image redacted — claim this model to add your own media You're done! Now you can simply hang the Raspberry Pi Casing onto your Skadis Board and quickly remove it, if you want to use it somewhere else. Good luck with your projects and Happy printing!
