Raspberry Pi Mount for Prusa MK3S
by Jav.BR · via Printables
| Format | STL |
| Category | Electronics |
| License | CC BY-NC |
| Triangles | 16.2k |
| Uploaded | Oct 9, 2020 |
⬇ 71 downloads
❤ 21 likes
👁 2.0k views
Description

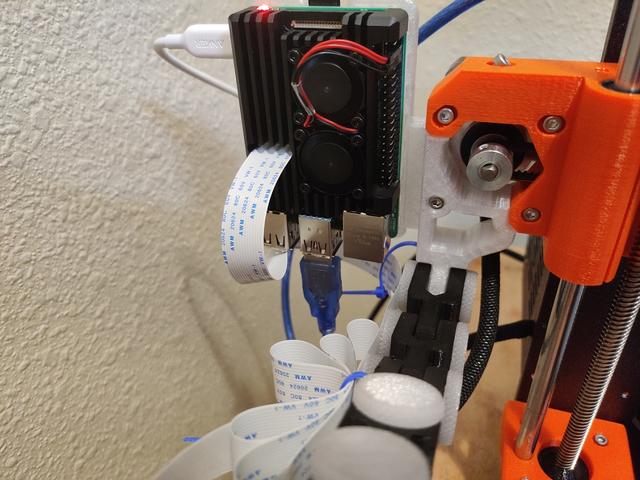

A Raspberry Pi holder that attaches to the Prusa's X axis stepper motor, for use in running OctoPrint. It's out of the way, and you can use short cables. It's is just a flat bottom for holding the Pi and does not wrap around to have walls with port holes - so it can be used for anything with the same screw mount holes spacing (Pi 3, 3 B+, 4). I made it that way because I was using one of those metal cases with cooler fans, so I replace its bottom piece with this. You will need the screws to mount, and if not using a case, a nut to hold the screws on the other side. The bracket is a remix from articulating camera arm listed below, but there's no reason why you couldn't use it by itself to just hold a Pi for running OctoPrint There are two gcode files attached, for PLA and PETG, 20mm layers, 20% infill on Prusa i3 MK3S The bracket is a remix of, and made to be used with, this project: https://www.prusaprinters.org/prints/3407 The bottom of the case is a remix of this project, with the sidewalls cut, and mount pins hollowed out to use screws instead: https://www.prusaprinters.org/prints/35475 Print instructions I have only printed in PETG, which seems better because of strength and heat resistance, but included PLA gcode because I figured it might be just fine as well
