Raspberry Pi Zero 2w (or pi 3, 4) Arcade Desktop

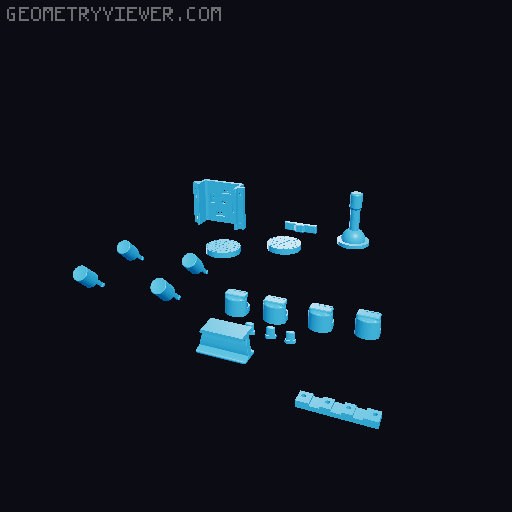

Hello welcom to my project, i have donit in 1 year time. First learning Fusion 360, and then creating the parts. I can't write a hole story about making the machine, but photo's tells enough i think. The screen fits perfectly, aligns well, and therefore does not let any light through. For the joystick only, it is handy to reinforce it with a small iron rod in the middle of the stick. And fill the inside with synthetic resin. A nice detail the board does output to external monitor. When needed (switched) Parts to make this machine work.. 1 LCD panel incl driverboard " 9.7 Inch LP097QX1-SPA1 LTL097QL01 DIY IPS 2K Lcd screen Monitor Control Driver Board" 49,- 2 200x200x1.5mm Silver Square Acrylic Mirror https://nl.aliexpress.com/item/1005004278098954.html 6 euro 3 Raspberry pi zero 2 23 euro 4 screw thread inserts 9x 4 mm 14x 2 mm, 4x 3 mm. and the bolts that correspond with the bolts. 5 euro 5 SD Card Female TF Micro SD Male (SD To TF) flexible Memory Card Extension Cable Extender Adapter Reader Reader Cord Linker 3.29 6 HDMI Switch 2 in 1 Out 2, HDMI HD Distributor Display Module 3.44 7 HDMI-compatible Extension Cable Male-Female with Screw Panel Mount Gold-plated Video Adapter Connector 30cm 1FT 1080P HDTV 1.55 8 Raspberry pi pico 2 (joystick controller) pi2040 5.00 9 4.5 4.5 1.5 Touch Switch 4Pin SMD Micro/Key Switch Contact 4.5x4.5x1.5mm 2,- 10 24 V/12 V to 5 V Buck Converter USB Mobile Phone DC-DC Step-down Module LM2596S HCW-P715 1.46 11 8Ω 2W Speaker Ph1.25 Mm 8ohm 2W 51146 4pin For Pcb800869 Lcd Drive Board Audio Port 8,- 12 hot glue. 13 Wire for connecting parts. 14 soldering iron. 15 8x micro limit switch SPDT 12X6X6MM 2,- 16 100W Type-C PD Fast Charger Decoy Board 5V 9V 12V 15V 20V 5A Fixed output power Charging Module for DC Laptop Motor LED light 3.26 : productId=1005005977070792 2.99 17 1x DPDT 2 Position Slide Switch 6 Pin 3A 250V 18 1x switch SS 12F15 19 4kg fillament. 20 112 hour Printing time depends on settings. 21 a "420x420x500mm" 3d printer or split things up for your printer size. Joystick Software for Pi pico 2 https://gp2040-ce.info/downloads and wiring diagram. Total price approximately 205 euro (verry fluctuation in time) ++++++++++++++++++++++++++++++++++++++++++++++++++++++ Raspberry pi zero 2 w or pi 4 or 3. Retropie 4.8 but use Buster or this will not work beqause mirror setting insert on bottom of config.txt display_rotate=0X10000 this is the only one i think works with the right mirror option. On batocera (intel) from remote putty terminal > export DISPLAY=:0.0 batocera-resolution listOutputs batocera-resolution setOutput Editing userdata/system/batocera.conf with "es.resolution=2048x1536.60.00" This works fine when I set 1024x768 but cant get anything above 1080 Run batocera-save-overlay in the terminal after making your changes? Have Funn
