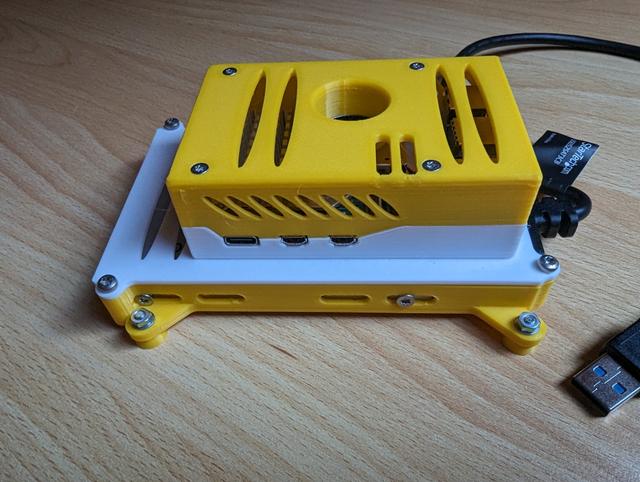

Raspberry Pi5 Active Cooler with modular 2,5" SSD/HDD Mount

A make would be highly appreciated Please also have a look on my Raspberry Pi 4 Version : https://www.printables.com/de/model/385660-raspberry-pi-4-enclosure-with-25-ssdhdd-mount UPDATE 16.03.2025: added pi5_case_top_m2hat_nogpio_vents_allover. This top case supports official Raspberry Pi active cooler and M.2 HAT+ . https://www.raspberrypi.com/products/m2-hat-plus/ https://www.raspberrypi.com/products/ssd/ https://www.raspberrypi.com/products/active-cooler/ UPDATE 22.11.2023: added raspifan.sh. Linux Shell Script for reading out temperature, frequency and fan speed (of official active cooler). (Within raspifan.zip) UPDATE 11.11.2023 : rpi3b-2.5drive_b14_notch_with_screw_holes added to mount SSD with M3 screws and also added pi5_case_button_Symbol_new It is possible to “stack” more than one SSDs. You also have the choice between several top cases (with GPIOs exposed or not or also with more vents) You need at least the following parts: pi5_case_top_more_vents.stl or pi5_case_top_nogpio_more_vents.stl or pi5_case_top_nogpio_vents_allover or pi5_case_top_vents_allover .Raspi_5_Enclosure_with_SSD_mountstl or Raspi_5_Enclosure_nogpio_with_SSD_mount rpi3b-2.5drive_b14_two_holes_9_5_mm.stl or rpi3b-2.5drive_b14_hole_on_one_side_9_5_mm.stl or rpi3b-2.5drive_b14_hole_on_one_side_9_5_mm (Depends on your USB SATA Adapter). I have used this USB 3 / SATA Adapter and This one And one of the Buttons Maybe something interesting ;-) For the pictures below: Blue line is temperature Orange line is CPU frequency Temperature and frequency of Raspberry Pi 5 without cooler (Throtteling after few seconds) : 📷 Image redacted — claim this model to add your own media Temperature and frequency of Raspberry Pi 5 with official cooler, running @2.4GHz : 📷 Image redacted — claim this model to add your own media Temperature and frequency of Raspberry Pi 5 with official cooler, overclocked running @3.0GHz : 📷 Image redacted — claim this model to add your own media Fanspeed included @ 2,4 GHz: 📷 Image redacted — claim this model to add your own media Fanspeed included @ 3 GHz: 📷 Image redacted — claim this model to add your own media
