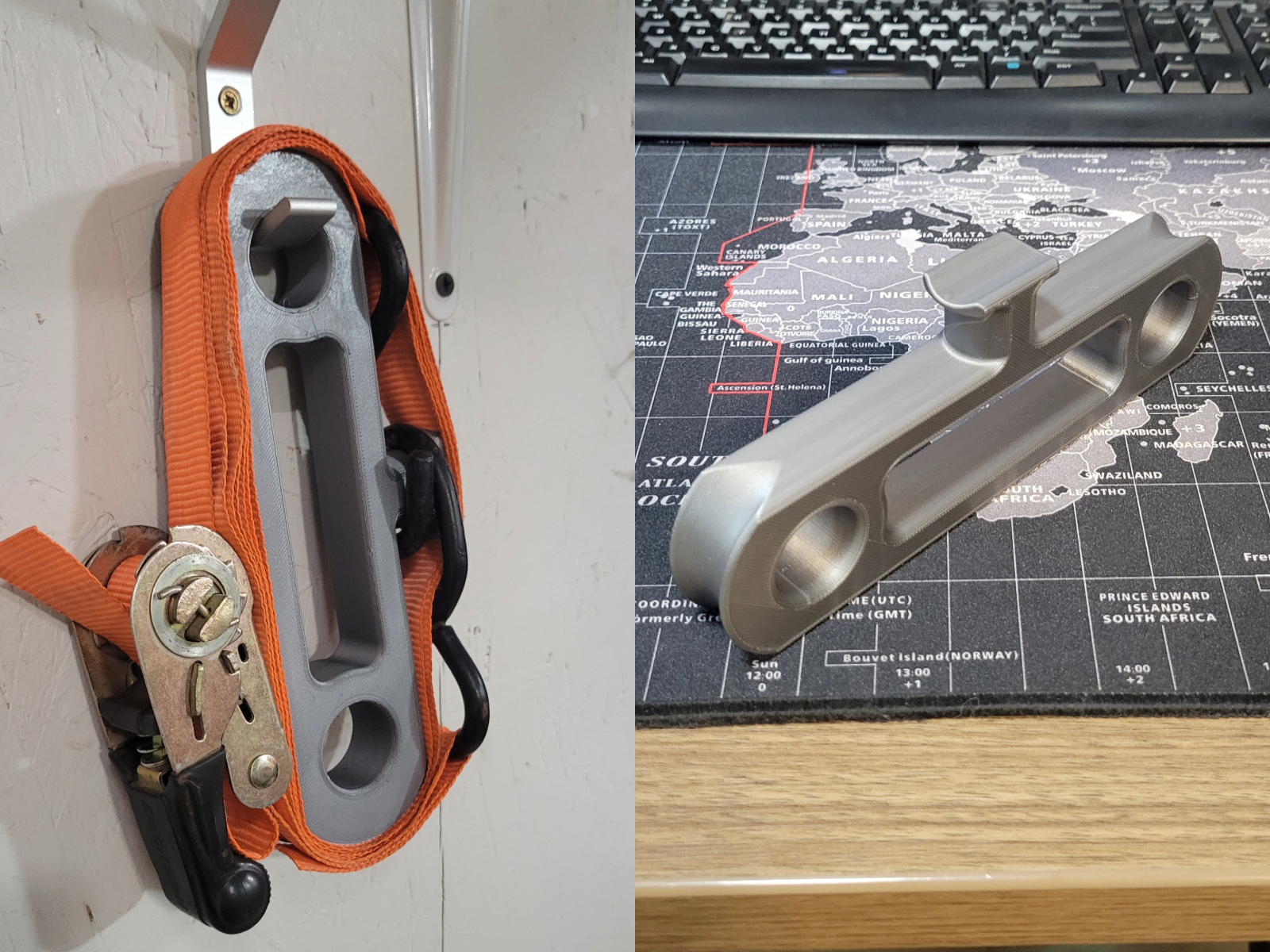

Ratchet Strap Organizer 3D model thumbnail

Ratchet Strap Organizer

by Garage_Tinkerer · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles39.6k
UploadedSep 21, 2023
⬇ 1.6k downloads ❤ 757 likes 👁 8.9k views

Description

See instruction video below. There is a large and small version. I printed them in PETG with 5% gyroid infill, but PLA would work just fine. EDIT: I had feedback that the tool should be wider than the strap. I made them as wide as the diameter of post that the hook would grab minus a few millimeters so that they could be printed on their side without any support. I found that even though they are not as wide as a strap, they hold the strap snuggly due to the concave ends. It was a compromise to keep the print as simple and quick as possible. EDIT #2 (Sept 18, 2023) From the comments I found out that some straps with different lengths to the hook end up with the ratchet portion on the curved end. I've made an offset version that should accommodate more strap styles. I would start with this version first. EDIT #3 (Sept 21, 2023) I've added a second version of the offset model with less offset (28mm from center). Hopefully this one accommodates more strap styles.
organizer tie strap ratchet down
