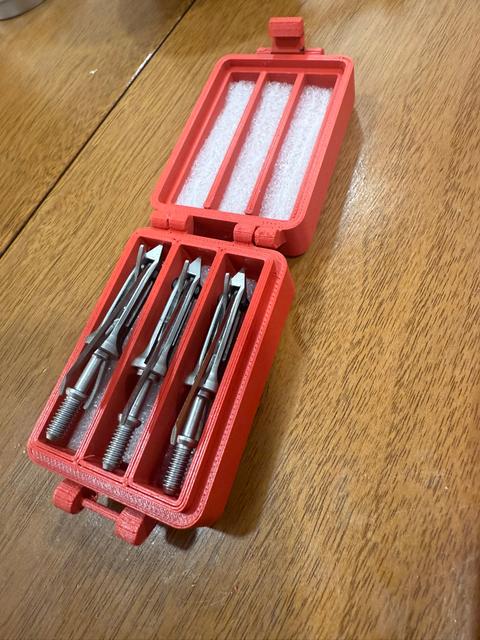

Ravin R101 Broadhead Container 3D model thumbnail

Ravin R101 Broadhead Container

by bobmagoo · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC
Triangles5.6k
UploadedOct 6, 2025
⬇ 17 downloads ❤ 2 likes 👁 109 views

Description

This is a latching box for storing three Ravin R101 Broadheads . It prints in one piece, without supports. I added a bit of foam to make it silent and to hold the broadheads in place. It probably works for aluminum (R102) and titanium (R100) versions, but I only have the steel. For a future version, it'd be cool to do outlines of the broadheads to they slide down into the case straight up and down. This gets uncovered razors off my desk, so it's good for now. Be careful retrieving the broadheads, use at own risk, etc etc If you want to tweak the model, see https://www.tinkercad.com/things/lMPrJ0gKymq-ravin-r101-broadhead-container The only Fusion parameters I needed to tweak from the source model were: CaseExteriorWidth: 43 mm CaseExteriorLength: 60 mm CaseExteriorHeight: 16 mm
crossbow broadhead hunting ravin
