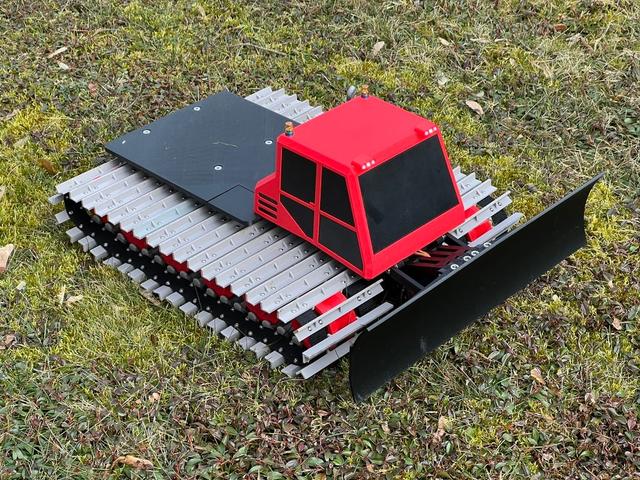

RC Snowcat

This RC Snowcat is powered by two independent motors, each driving one track, allowing for precise skid steering and excellent maneuverability. The track system consists of individual segments connected by either rubber bands or reinforced fabric tape, providing flexibility and durability while maintaining strong traction on snow. A large front plow is mounted to enhance realism and functionality. It is operated by two standard servos, enabling smooth lifting and lowering of the blade for clearing snow or obstacles. All components are designed to fit within the build volume of common 3D printers such as the Bambu Lab X1C. The model is primarily printed in PETG for a good balance of strength, flexibility, and weather resistance. The drivetrain uses metal gears for increased durability under load, though nylon printed gears can also be used as an alternative. Specifications (without plow) Weight: 5.1 kg Length: 48 cm Width: 39 cm Parts List 2x 540 Motor 80T 2x Planetary Gearbox Injora 1:17 2x MG996R Servo 2x Helical Gear 1M 5mm 12T R 2x Helical Gear 1M 6mm 12T R 2x Servo Horn Aluminum 6x Precision Shaft Ø 6mm x 300mm 4x Precision Shaft Ø 4mm x 100mm 26x Ball Bearing 686-2RS 6x13x5mm 14x Shaft Collar 6mm 320x DIN912 Screw M3x8mm 310x M3 Self-locking Locknut 2x DIN912 Screw M5x45mm 8x Countersunk Screw M5x16 8x Heat Brass Insert M5x6mm 4x DIN912 Screw M6x55mm 4x M6 Self-locking Locknut
