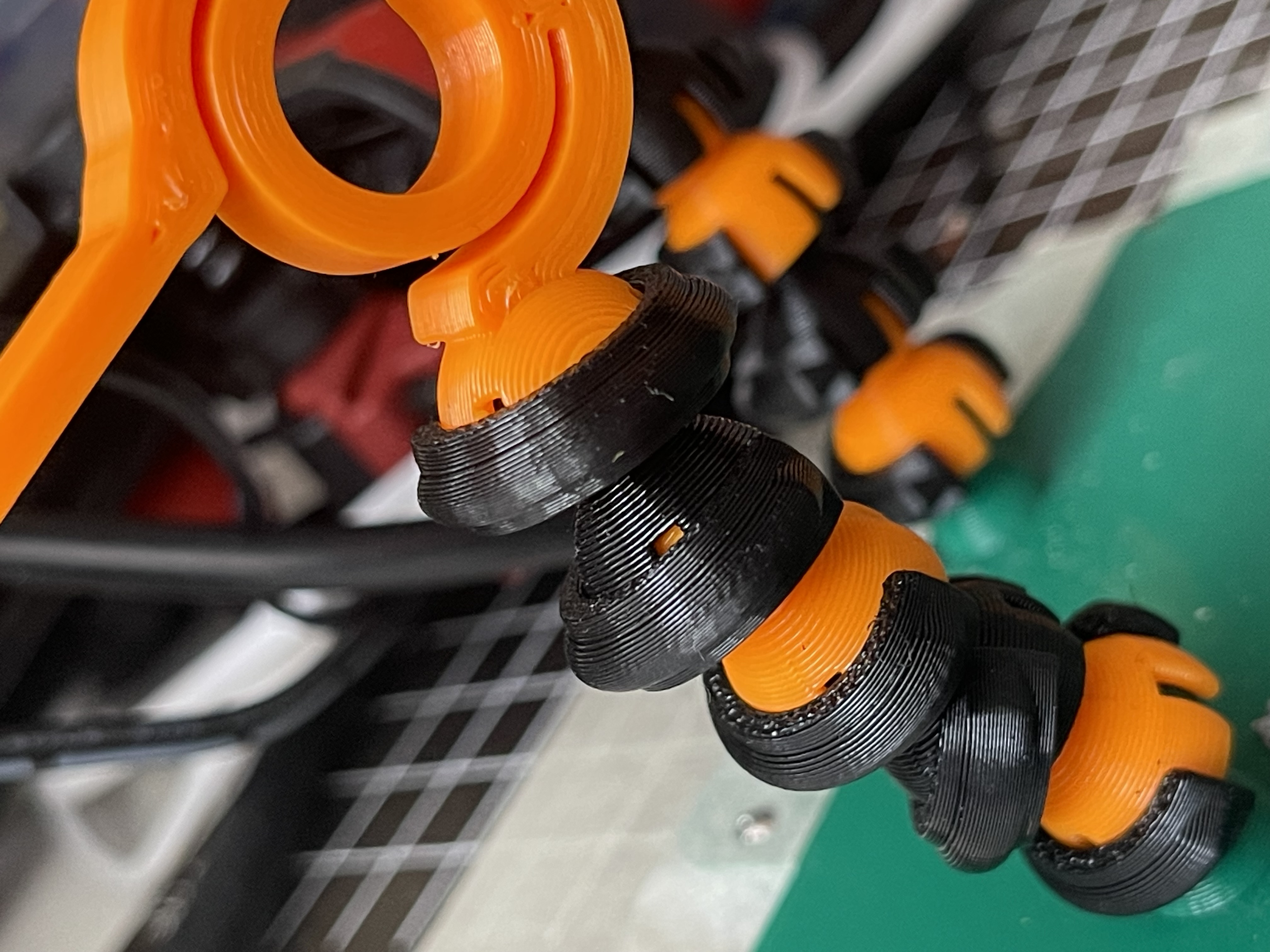

Reinforced clamping clip for soldering 3rd hand 3D model thumbnail

Reinforced clamping clip for soldering 3rd hand

by race85com · via Printables
FormatSTL
CategoryTools
LicenseCC BY-SA
Triangles98.4k
UploadedJan 26, 2024
⬇ 78 downloads ❤ 39 likes 👁 950 views

Description

If you are using this popular 3rd hand solution by jfoucher https://www.printables.com/cs/model/197699-third-hand-for-soldering then you may have issues with weak links. Another model by @MarioL_954733 sorts this out partially, however the reinforcement is still not good enough. My remix is very tight and has big clamping force. Fit the ring from ABOVE of the link. Option 1: print at 100% Option 2: scale the model in your slicer to 98% if more clamping is needed Printing instructions: PETG will be the better option, PLA was not tested print on its side, no brim, no supports use 0.2mm layer height use 4 perimeters Version history: v1.0 26.1.2024 initial release
link hand third soldering aid
