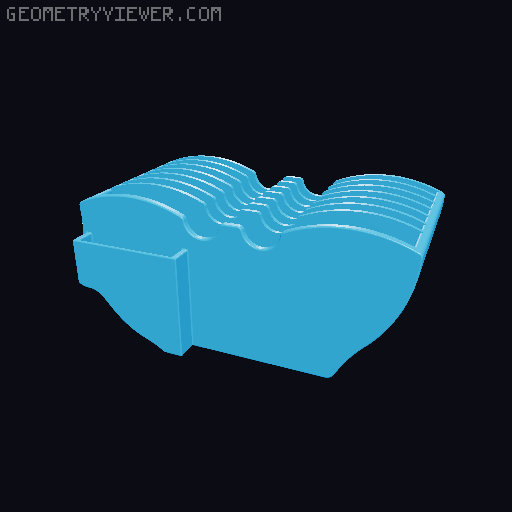

[Remix] Cutting Disc Holder for Bosch MUM 6 (and maybe MUM 9 & Cookit) added bigger slot and holder for dice cutter

Thanks to SeiKeinFrosch for the original. (original text below) I have added a wider slot for the cube dicer (link to bosch) (picture below) and also added a pocket for the blade-array. Since I am not very good using FreeCad (original project is provided as FCSTD) I used FreeCad to export it as STEP and just cut the part and copy party to my liking. I think it come out quite good, sadly not very "modifiable" anymore. My pictures are a "fresh print", no cleanup besides removing supports and rafts. ** New Features (remix v1):** 1x new wide slot for the two-blade disk 1x pocket for the blade-array ** ''Points to mention:** The wide slot in additional to the six before. Kept the part for the labels, but increased in width. The big disc does not fall completely into the slot by itself, but it can stored in both directions. The blade-array can also be stored with the sharp side to the body. This pocket is also open in the bottom to be "ventilated" and water can run out. ** Potential improvements ideas:** holder for the poke-tool delivered with the set (I don't think I really need this) one wider slot for a additional fries cutter, that may be wider than the other disks a lid against dust redo into a proper parametric model ** Print Settings: ** Printed in PETG (PLA is okay too) Supports needed (Tree-Hybrid worked for me) 3 Walls (increase for heavier appearance) 10% Infill (any should do, I used rectangles) 0.2 mm Layer height (To you liking) Smooth print-bed-plate (for nice finish and possible addition of adhesive feet) Files: remix Bosch mum cutting disk holder v1**.3mf** - My Print Project for BambuLab A1 remix Bosch mum cutting disk holder v1**.stl** - "Print" export by fusion360 (Need more? just ask) 📷 Image redacted — claim this model to add your own media ** Took from original: ** ** Summary ** Update 2026-03-15: Added source file "as is" (FreeCAD). The Bosch MUM 6 kitchen machine is just great itself ... but it lacks an original cutting disc holder / cutting disc stand for the accessories (yet?). Alternatives: The "lower" series bags don't fit and other 3rd party designs (to be purchased) didn't make me happy. Aim of the design Keep up to 6 standard discs in place Easy naming of the discs (e.g. standard 9mm DYMO labels fit here, length approx 44mm) Allow easy grabbing from a cupboard (the small handle helps to grab it initially) allow easy cleaning (holes in the bottom for drip water ... see comment in constraints below) Look not (too) bad :-) Hint: The cutting discs of Bosch series 6 / series 8 and Cookit seem to be identical. So it might be usable for these machines, too. Would be great if you could leave a comment (for others) whether it works or not. Constraints Flat bottom to ease printing (so if you want to use the bottom holes for drip water, please use e.g. small adhesive feet) The "grey plastic gear rings" of the cutting discus have different diameters - I used one standard diameter, so you need to figure out the best position of each disc. However, you are flexible. It might not fit to very broad discs (e.g. the french fries cutter) "One body" design with long printing time (in my case: approx 40 hours) Printing: In my case ... simple PLA matte, 10% infill, with supports, with raft. Hint: Next time I'd use "black" as color, as it fits better to the machine. Note: The design (via FreeCAD) is parametric, but is not fully clean. Let me know if one needs the source file. ( not this remix! )
