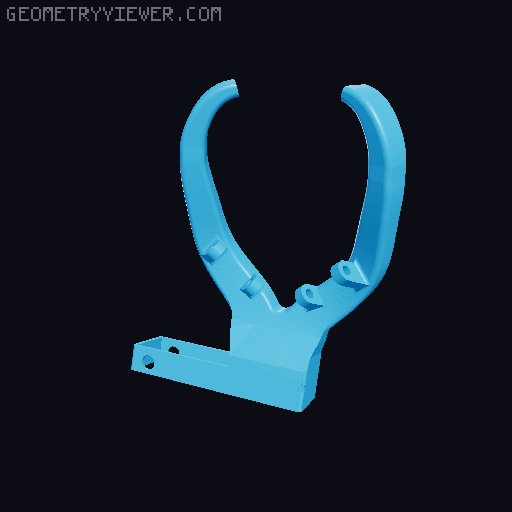

Remix  Ender 3 Fan Duct - Easy, Powerfull, Lightweight 3D model thumbnail

Remix Ender 3 Fan Duct - Easy, Powerfull, Lightweight

by Missto3 · via Thingiverse
FormatSTL
CategoryHome
LicenseCC BY-NC
Triangles39.9k
UploadedApr 2, 2026
⬇ 5 downloads 👁 47 views

Description

I want to remix this item, beacuse I am using direct drive on ender 5 pro and its not fitting, but I really like design and lightweight for higer speeds, now its possible to use this with direct drive setup dual gear. I really like it I just remixed one item but uploaded all of them just to be sure you do not miss other stuff :) Easy to print only 2 small support walls required for the main body, everything else without support max. 3:45 h printing time (50mm / s) Powerful 5015 fan with smooth and large air duct directly to the nozzle Lightweight only about 30g material but stable BLtouch compatible offsets X -27.5mm Y 0mm Klipper approved stable even at high speed and high acceleration Screws 3x M3x8 2x M3x20 4x M3x16 (with 20mm Fan 4x M3x25) 1x M3/4x20 + Nut Optional: Body Back - prevents air from reaching and cooling the hotend BLtouch Distance Plate - to optimize the Z-offset of the BLtouch
