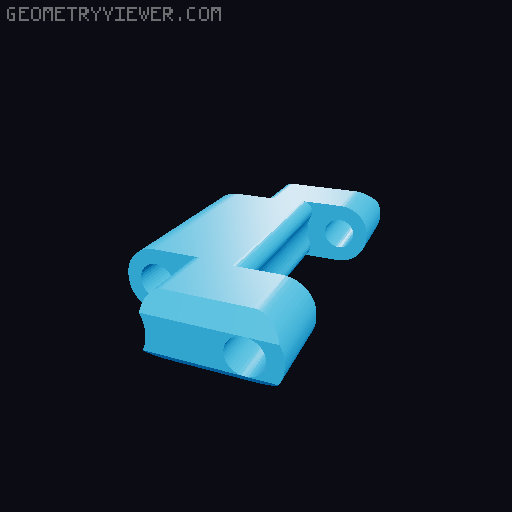

Removable Links 3D Printed Watch Remix

This remix is a modified link arrangment to allow adding or removing links to the watch strap. It will require reprinting the case and print in place links on it to facilitate the adding of links. It is currently WIP I may or may not get around to updating this further in the future. the case and PIP links are sized to fit on a voron V0 so printer size for bigger wrists is also no longer an issue. Despite measuring my wrist and printing it twice I wasnt happy with the fit of the watch. It also means gifting this to somebody doesnt require you needing to know their wrist size. Printing Instructions All my tests have been conducted at 0.15mm Layers 3 Perimeters Assembly Instructions; adding or removing links The pin is pushed narrow end through from the side where the inner link is to the left. it should click and be nearly flush on both sides of the link the flat on the pin should be facing up. For best results the inner link should be drilled/reemed (even running a 2mm allen key down it should suffice) and the outer should be left as printed Update 20/08/2023 Watch_Remix_Link_v6 superseeded by Watch_Remix_Link_v7 chamfers added to edges to match case links.
