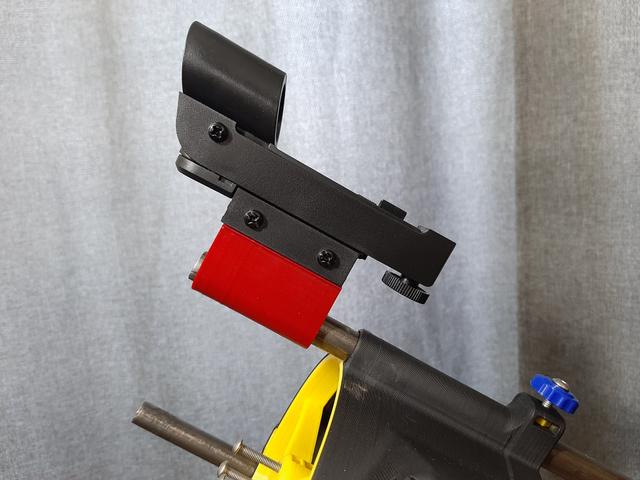

Reverse dovetail mount for red dot finder for Hadley telescope (M4) 3D model thumbnail

Reverse dovetail mount for red dot finder for Hadley telescope (M4)

by JoshShabtaiCa · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles4.7k
UploadedFeb 18, 2023
⬇ 166 downloads ❤ 11 likes 👁 829 views

Description

Print settings 0.4mm nozzle (0.6mm may work) 0.28mm layer height Gradual infill (but it shouldn't matter, really) No supports Description Some cheaper red dot finders have the dovetail shape attached to the telescope itself (e.g. this guy ). This lets you mount one of those on a Hadley Hardware 12mm M4 screws (x2) M4 nuts (x2) Fits ½" rods, may work with 12mm. If you try it out, let me know in the comments
hadley
