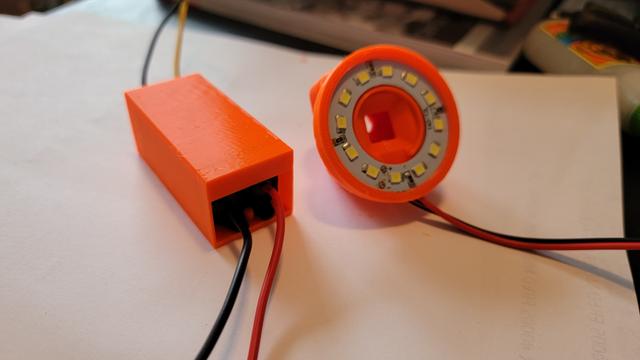

Ring LED Cover and Buck Converter 3D model thumbnail

Ring LED Cover and Buck Converter

by Brian Berkley · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY
Triangles12.1k
UploadedOct 4, 2022
⬇ 7 downloads ❤ 4 likes 👁 156 views

Description

The buck converter I sourced from the OP's model notes was slightly larger and has mounting feet, and the 40mm LED rings have a tab opposite the wiring, which is offset a bit. A short M3 socket cap or button head screw can be used to affix the output end of the buck converter. I only printed the box to test fitment so far, and the camera cover. I was thinking about adding a dovetail to Sneak's original X-Axis mount, and a keyway on the buck converter box so they could be printed separately without supports.
ledlight raspberrypicamera
