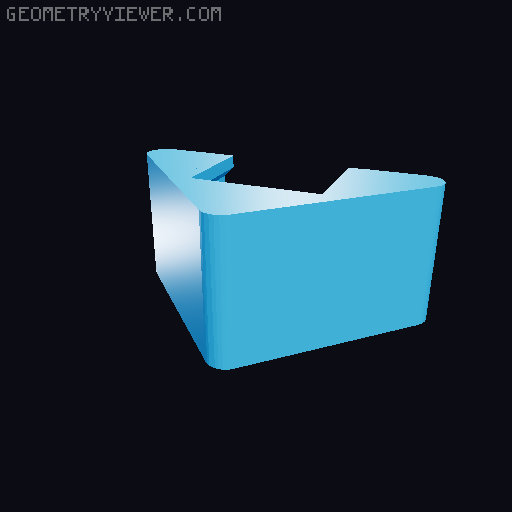

Rocker switch insert
by kevman · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 246 |
| Uploaded | Aug 28, 2023 |
⬇ 29 downloads
❤ 8 likes
👁 527 views
Description
I wanted to put a switch in place to control some LED lights so I remixed one of the inserts to hold a rocker switch. Note it is a bit thicker than the profile of the insert wall to accommodate the switch. There are little openings on the back for wire routing. I used the following switches https://www.amazon.com/gp/product/B07GNHMY3B/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 I hope you find it useful, let me know if there there are any issues. Cheers! UPDATE: I added one for the rear rise holes as well, I didn't realize they were slightly larger. You mount the switch stealthy in the rear now :) UPDATE 2: I realized in my testing that as you activate the switch you could potentially put the insert through by mistake, so I adjusted both models such that a portion of the switch's out lip will over lap on the riser frame preventing this , I've added that new models with “overlap” in the name and description.
