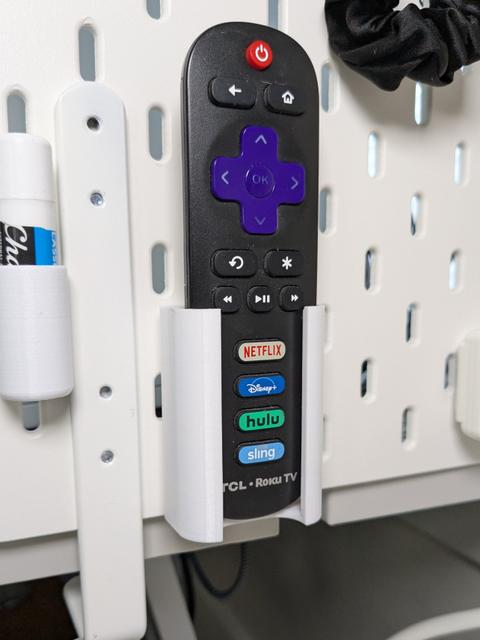

Roku TV Remote SKADIS Mount with T-Nuts 3D model thumbnail

Roku TV Remote SKADIS Mount with T-Nuts

by FractalDreams · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-SA
Triangles2.8k
UploadedDec 16, 2024
⬇ 53 downloads ❤ 1 likes 👁 214 views

Description

I have a SKADIS pegboard by my bed, and wanted a way to store my Roku TV remote without taking up space on my nightstand. Thankfully, someone had created a remote holder and provided the Fusion 360 files on here. I made a couple quick edits to better suit my needs and remove a bit of unneeded material, and while it's a bit messy I am sharing my .f3z file as well in case anyone needs to make minor adjustments. This is made to fit a remote for a 2020 TCL Roku TV, it may fit some similar models as well. The holes are sized for M3 screws for the T-Nuts, but you can either resize them in Fusion or use some washers for M2 or M2.5 screws. The files for the SKADIS T-Nuts and more information about the system are available here . I used one of the M3 printed thread nut remixes and it's holding just fine. Screw length should be about 15mm. Any firm filament should be fine for printing, I used PETG and default settings other than 3 perimeters. Print in vertical orientation as loaded. You shouldn't need supports or a brim, but if you are having trouble printing feel free to use what works for you.
holder mount remote skadis tnut roku skadistnut
