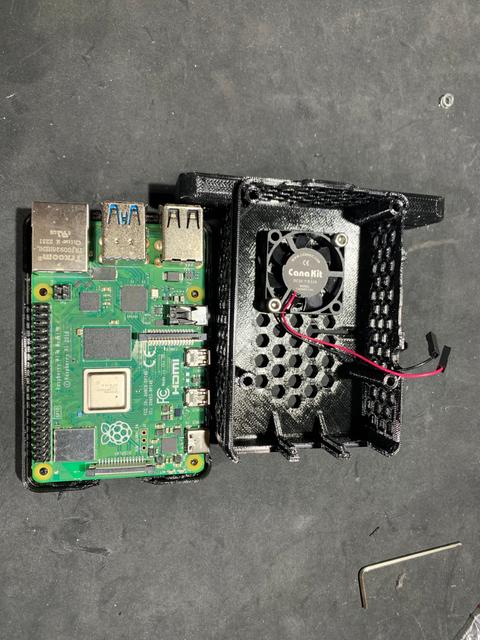

Rpi 4b Case with 30mm fan and camera slot 3D model thumbnail

Rpi 4b Case with 30mm fan and camera slot

by Niftyfixits · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY
Triangles17.4k
UploadedJul 17, 2023
⬇ 26 downloads ❤ 5 likes 👁 359 views

Description

Though Malolo's design had 259 files, and 4 or more of those were openscad parametric designs, I still found myself wanting. I added some robust mounting tabs to the end of the model with chamfered holes to fit M3x6mm heated inserts, which allow for a solid mounting solution which can be repeatedly removed and reused. The case itself is snap fit with plenty of ventilation, as it will be inside the Prusa enclosure with my Mk3s+. Happy Printing! Update: after 6months printing almost exclusively with PETG, the Rpi4b still has not had thermal issues, and the case has been removed and put back in place numerous times.
raspberrypi raspberrypicase rpi rpi4 raspberrypi4 raspberrypihousing rpi4b
