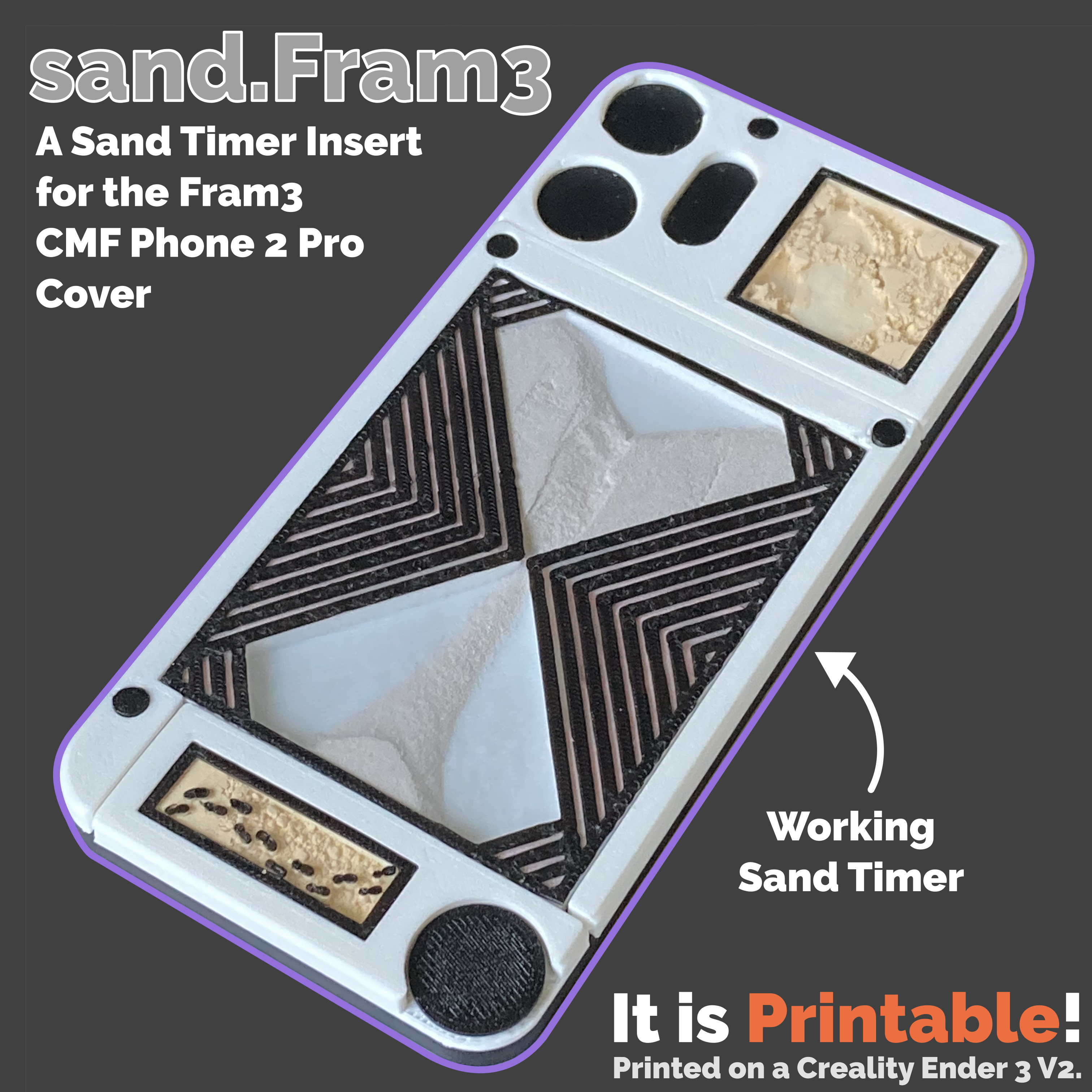

sand.Fram3 - A Sand Timer Insert for the Fram3 CMF Phone 2 Pro Cover 3D model thumbnail

sand.Fram3 - A Sand Timer Insert for the Fram3 CMF Phone 2 Pro Cover

by 80xWall · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY
Triangles1.6k
UploadedJun 13, 2025
⬇ 4 downloads ❤ 1 likes 👁 108 views

Description

About This model is a set of inserts for the Fram3 cover that is compatible with the CMF Phone 2 Pro. 📷 Image redacted — claim this model to add your own media Additional Supplies 1mm Acrylic (dimensions below) Sand A sealer (RTV silicone is recommended, but I used petroleum jelly) Charms to bury in the sand What sand can be used? Anything grainy that does not clump up should probably work. (I used pumice) Just make sure it is dry or else it will stick to the walls/itself/jam up. 1mm Acrylic Dimensions The following dimensions have 0mm clearance. Top: 31mm x 31mm Middle: 66.5mm x 88.75mm Bottom: 37mm x 12mm Required dimensions may vary due to individual printer tolerances. Printable cutting templates have been included, but are also subject to variation printer tolerances. 📷 Image redacted — claim this model to add your own media Slicing & Printing Orient model with the open side facing up. Disable supports. Add a pause after the retaining wall is printed / before the sealing layer is printed. Print until the pause Add sand (Note: Can get messy) & charms Apply sealer to the ledge Place acrylic sheet If oil or sealer seeps onto the acrylic, clean it off or else the sealing layer will not stick! Continue print 📷 Image redacted — claim this model to add your own media All First Party Insert Sets a.k.a “Inserts I Would Use” HERE! sand.Fram3 (Sand Timer) charm.Frame3 (Shaker Charm) rain.Frame3 (Rainmaker) 📷 Image redacted — claim this model to add your own media
cmfphone2pro fram3

Originally published on Printables
