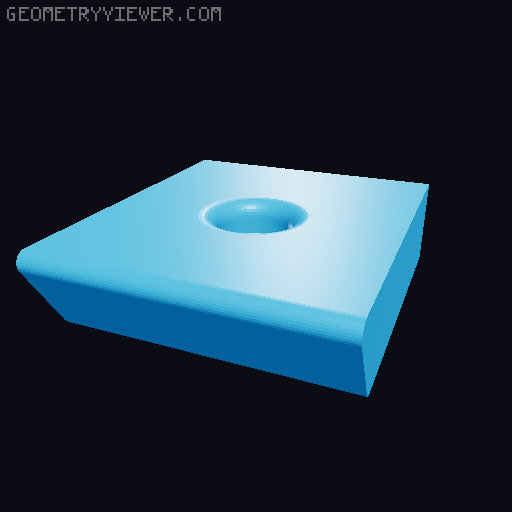

Sanding Block 3D model thumbnail

Sanding Block

by NightHawk · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC
Triangles1.8k
UploadedDec 28, 2022
⬇ 260 downloads ❤ 40 likes 👁 2.2k views

Description

None of the avilable sanding blocks fully matched what I was looking for. It needs the perfect size to have a proper grip and it needs to hold the sandpaper tightly. Additionally I did not want it to have any holes for the screws, that need to be covered. Labelled uppper parts are also coming to show the grit of the sandpaper … Required hardware: 2x knurled screws M3x10 or 2x Elothan's Thumbscrews as suggested by IWannaMakeStuff 2x M3x5 or M3x6 threaded inserts Available Files : sanding_block_base_v12.stl: base for the sanding_block_top_split_no_text_v31.pdf: print 2x to clamp sand paper to base, without text for sand paper grit sanding_paper_blueprint_v2.pdf: Blueprint for the sandpaper, print this from Acrobat Reader with the setting “actual size” and cut around it. Printing Instructions Prusament PETG Urban Grey layer height 0.15mm No support No raft Feedback Appreciated Please give feedback and post your makes. Any suggestions and improvements are appreciated.
tool sanding block
