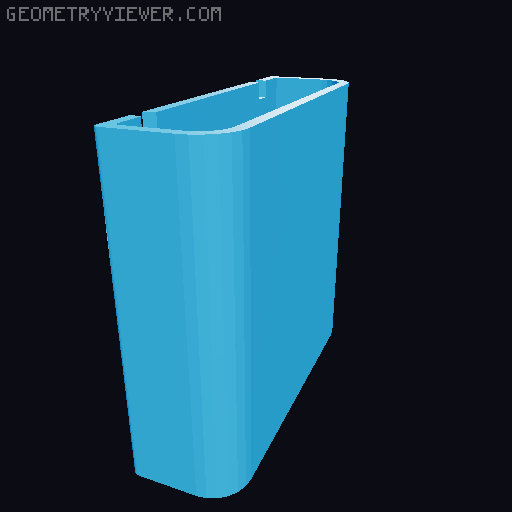

ScanCard Organizer

For anyone using the ScanCard organization system, I created a neat organizer to have my ScanCards at the ready and organized. There is also a pen/pencil cady with dividers that can be put on either end. This is a modular system so you can print one box or as many as you want. The boxes are held together with dovetail keys at the top and bottom and once in place is a very solid connection. The middle box has dovetails on both right and left side for attaching a pencil caddy or another box on either sides. The left box and right box only have dovetails on one side so they have a clean and finished look. If you want to take the easy way out just print all middle boxes if you don't mind the small unused notches on the side where you don't attach anything. ScanCards are 3.25in x 3.25in in size, this is unique and slightly larger than a regular post-it note. You may need to experiment with dovetail sizing to get the boxes to connect. I wanted the dovetails to fit very snuggly to hold the pieces together well. I resize mine to x=96%, y=96%, z=98% your mileage may vary but this is a good starting point. I recommend printing the box with 5 wall so that there isn't any printed infill in the walls.
