Servo automated iris / aperture for 120 mm fan

by MichalCiombor · via Printables
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles3.8k
UploadedJul 23, 2023
⬇ 494 downloads ❤ 134 likes 👁 3.6k views

Description

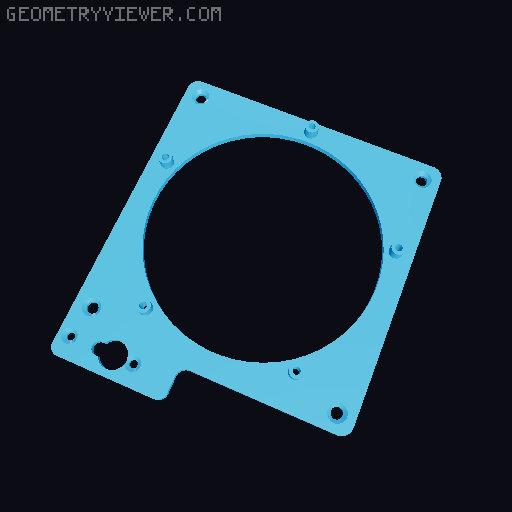

This is a remix from https://www.printables.com/model/5122-servo-automated-iris-aperture-for-air-flow-control Many thanks to @AcEKrystal I've changed the base plate only, to mount it directly to 120 mm fan. Servo motor is moved to allow 4 screws for tightening to the fan. Only “baseplate-aperature-120mm-fan” file was modified, rest of the files are original, but I've included them here to have complete set of files to make this project. Design has two things improved that are not visible on the pictures: 1. Servo 3 mm screw hole is moved slightly because it was at an angle 2. Right side of the servo mounting plate is extended so that the blade is not catching on the edge, but rather is gliding on the mount itself.
