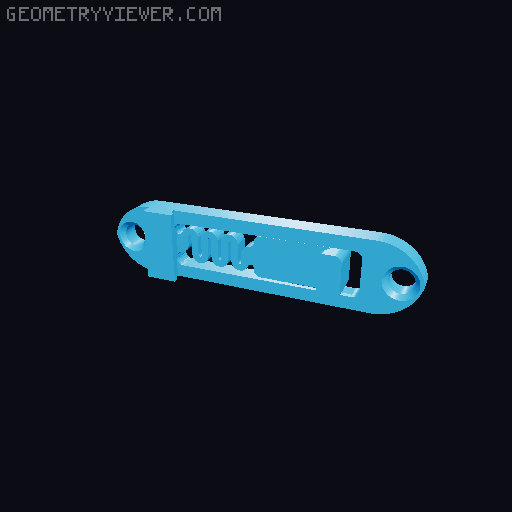

Shelly 1 / 1PM DIN Rail mount for Wago 221

by schmieeed · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles6.9k
UploadedMar 24, 2024
⬇ 165 downloads ❤ 7 likes 👁 1.1k views

Description

I reremixed the version of boinappi which is a remix of the magnificent design from Marc Neuhaus to fit a Shelly 1PM. Heat inserts are very nice but unfortunately i don't have some ;-) Will fit for Shelly 1 and 1PM, please be aware they switched the position of SW and I/L1 You will need: 1x Shelly1 / 1PM 4x Wago 221, 3 cable version 2x M4x10 cap or other head screws (select respective Din Mount version) 4x wire terminator, isolated (please use them) 30cm flexible wire Shelly will not be flush with the holder and poke out 2mm or so. There is also no sufficient protection against touch. Printed in PLA, 15% infill, 0.16mm, 0.4 nozzle Changes : Housing : M4 threads printed in place instead of heat inserts Labels are mirrored to avoid crossing cables inside Labels changed from negativ to positv (0.2 mm) Added a cutting at the bottom for easier installation Shelly logo added on the top DIN mount version 1: Countersink holes added (5mm) for the M4 countersink screws DIN mount version 2: Normal holes added (4.5mm) for cap or any other head M4 screws
