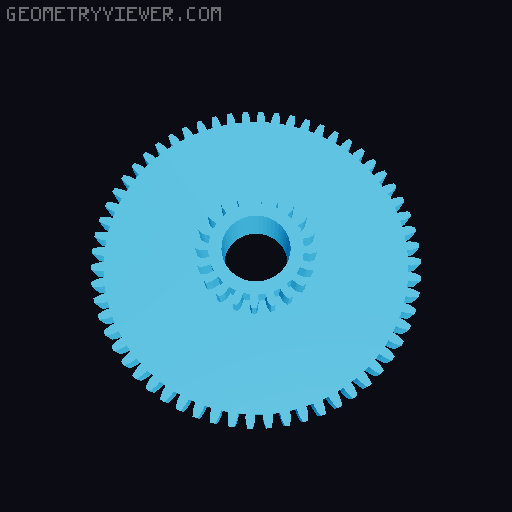

Simple Expandable Gearbox 3D model thumbnail

Simple Expandable Gearbox

by Quinn_3dprints · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles28.2k
UploadedMar 5, 2026
⬇ 20 downloads ❤ 1 likes 👁 49 views

Description

I'm building this gearbox as a tiktok series where I add one gear every episode, and now the models are available so you can do it yourself! The gear provided has a 60:20 gear ratio, or simplifed 3:1. This means that if one gear spins one time, the other one spins 3 times as fast. If you add more gears, the ratio will increase exponentially. For example when you have a total of 10 gears, and spin the last one, the first gear spins 59049 times as fast! Update: I have remodeled the gears, they are way better now. Please know that the new gears are NOT compatible with the old gears/the spacer. The sideplates and axles have stayed the same and are compatible with both the old gears and the new gears. INSTRUCTIONS: -YOU NEED TO PRINT 2 SIDEPLATES! (one called sideplate_2 and sideplate+axle___mm!!! -You can add as many gears as you want. If you want a version with a longer axle, just tell me and ill publish the file! -Supports are not needed -Assembly is easy and doesn' t need any instructions. I also added a additional spacer gear, but it is not necessarily needed. THE TEXT ON THE GEAR IN THE COVER PHOTO IS REMOVED ON THE MODEL!
easy to assemble educational fun Gear Gear Ratio gearbox gears mechanical project RPM
