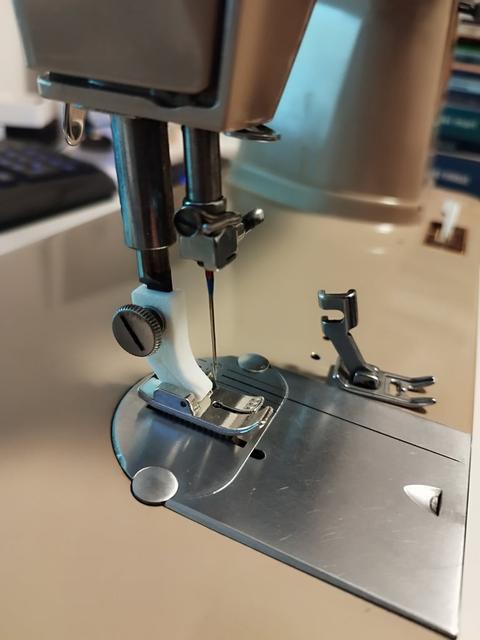

Singer Adapter with Slant Shank Type 401 3D model thumbnail

Singer Adapter with Slant Shank Type 401

by Lorenzofolg · via Thingiverse
FormatSTL
CategoryOther
LicenseCC BY-SA
Triangles430
UploadedApr 9, 2026
⬇ 1 downloads ❤ 1 likes 👁 11 views

Description

The foot mount for https://www.thingiverse.com/thing:2238738 has been moved back by 1mm (approx. 0.04") to prevent the needle from rubbing during the downward stroke. Recommended Print Settings Layer Height: 0.08 mm Initial Layer Height: 0.16 mm Line Width: -Default: 0.4 mm First Layer: 0.45 mm Outer Wall: 0.38 mm Inner Wall: 0.42 mm Top Surface: 0.38 mm Infill: 0.42 mm Internal Solid Infill: 0.42 mm Support: 0.42 mm
adattatore singer 401 presser foot singer singer 401 Singer Adapter with Slant Shank slant o matic 401

Originally published on Thingiverse
