Skadis Screwdriver Holder (T-Clip)
by RaketenZonk · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-SA |
| Triangles | 31.1k |
| Uploaded | Aug 11, 2024 |
⬇ 421 downloads
❤ 55 likes
👁 1.4k views
Description

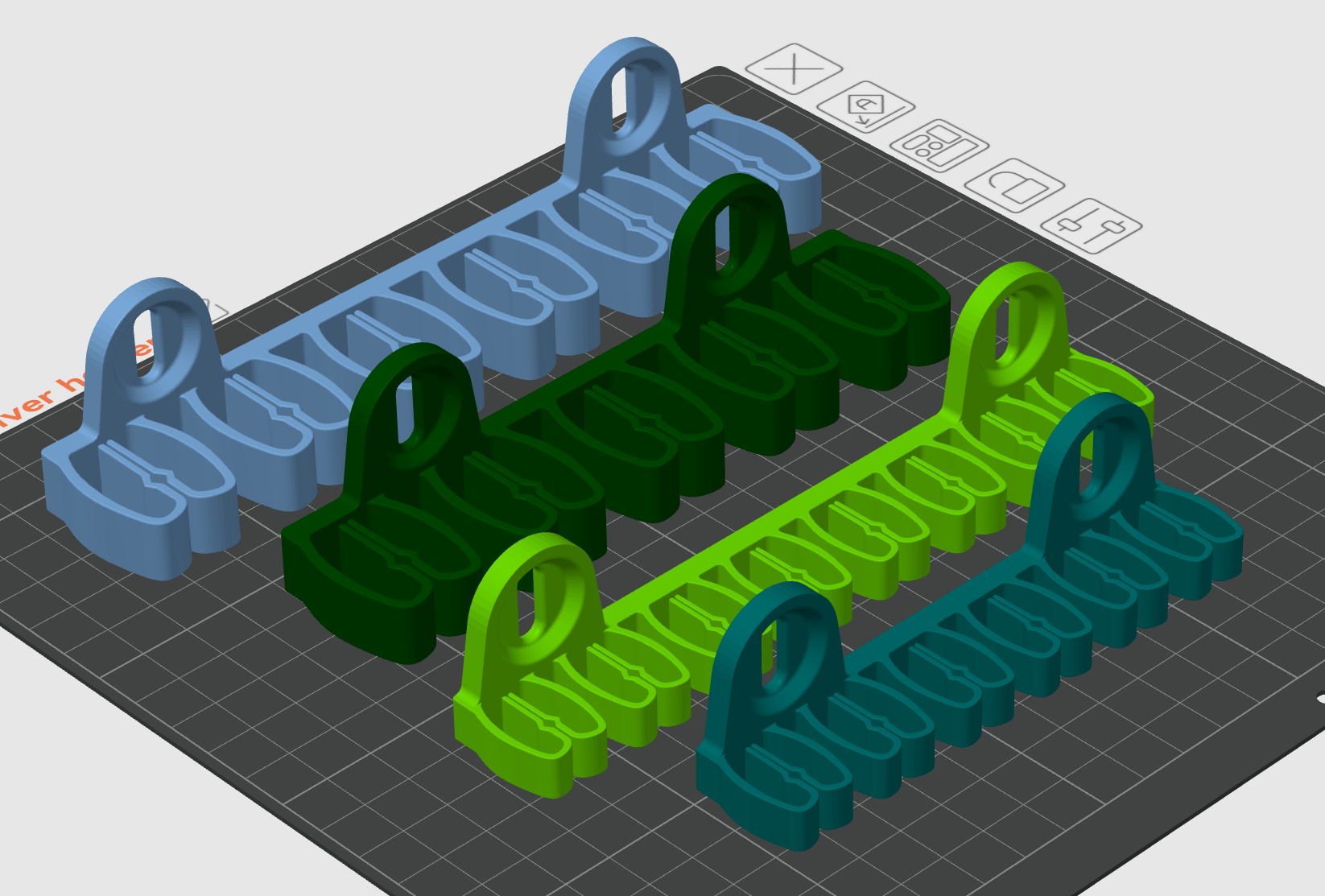

From original “Screwdriver Holder” by mathiasl : This Screwdriver Holder is more space effective since you can just push or pull the screwdriver right in or out. Fits most screwdrivers and they sit tight and doesn't wiggle. To attach it to your Skadis board you need the “Skadis T-Clip System - Low Profile Flush Mount Clips” by tchoupshop . I found my painted board to be thicker than what is calculated for the “Painted Skadis” version of the clips so I will upload a remix of these soon. Please give me your feedback if this is the case with your boards, too. There are 2 sizes for 2 sizes of screwdrivers. The bigger one is for screwdrivers with handles up to 30 mm in diameter (this is the original size!), the smaller one is for handles up to 20 mm in diameter. For both sizes there a 2 lengths, one with 2 slits apart (80 mm) on the board, one with 3 slits apart (120 mm). If you need other sizes, please tell me. Pictures will follow soon. No supports needed if you print them in the same orientation as you would hang them to your board (don't lay them on the flat side that later faces the board). Note: I linked a remix instead of the original file because of license incompatibilities, but I have the allowance from mathiasl for doing so.
Originally published on Printables
